1910 Cart Single-Shoot Models

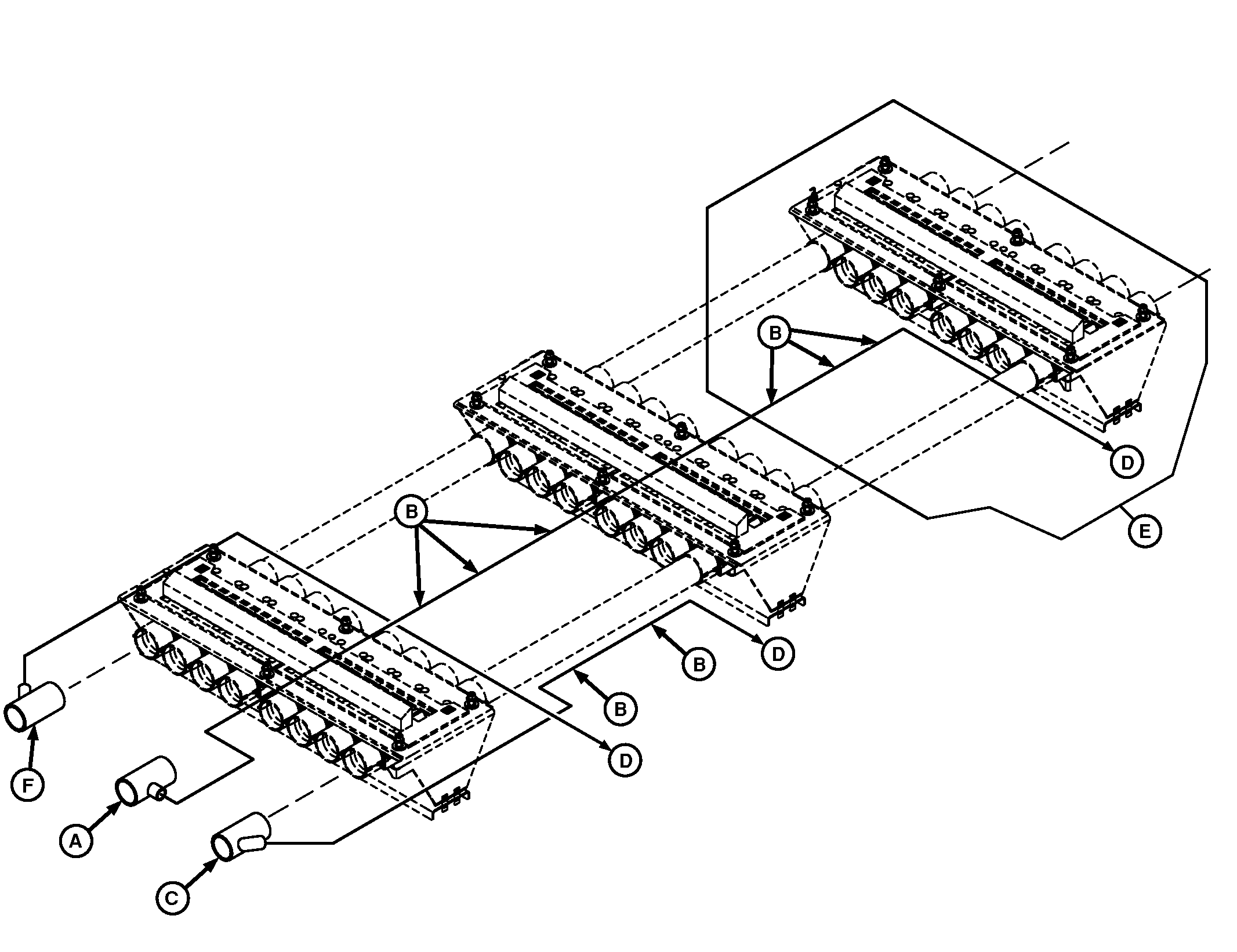

Tank Pressurization Hose Routing

A49389-UN-21JUN02

Stationary Single-Shoot System

A - 90° End Tube—Middle Tank Models Only

B - Tie Strap Locations

C - 90° End Tube—Two Tank Models, 30° End Tube—Middle Tank Models

D - Tank

E - Middle Tank Models Only

F - 30° End Tube

IMPORTANT: Attach pressurization hoses to primary tubes. Lateral routing of pressurization hose to be directly behind 1st and 2nd manifolds.

IMPORTANT: End tube (C) will have a 90° elbow on two tank carts and a 30° elbow on three tank carts.
