Radar Calibration

IMPORTANT: Perform calibration in the field under seeding conditions. Inflate all tires to specifications given in operator's manuals. Do not inflate to level given on tire sidewall.

A59552-UN-08MAR07

Performance Monitor Button

A59377-UN-23FEB07

Settings Softkey

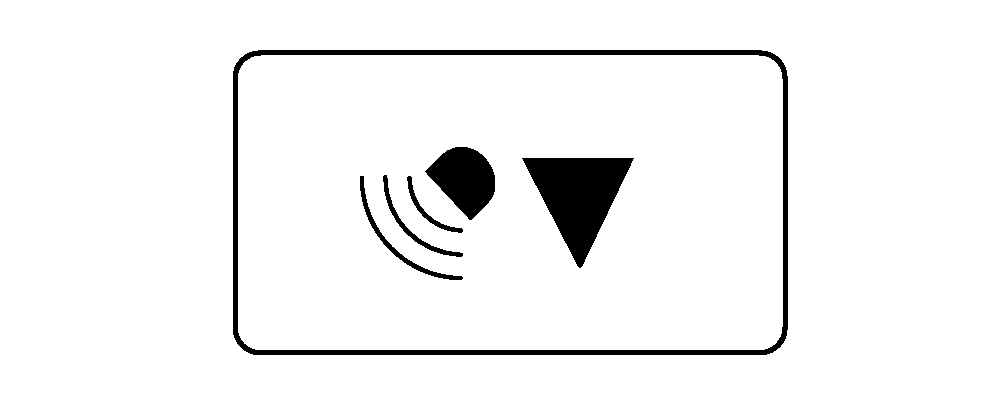

A59379-UN-23FEB07

Radar Calibration Button

Some radars are integrated into tractor system. Calibrate these according to tractor operator's manual.

A radar that is connected directly to the GreenStar™ harness is calibrated using the following procedure. Dickey John™ Radar is an example of a radar that is connected directly to the GreenStar™ harness.

1. Select Menu >> Performance Monitor button >> Settings softkey.

2. Select Radar Connected To Display check box and mark with a check.

3. Select Radar Calibration button.

4. Follow the three step procedure listed on screen.

   Step 1: Measure and mark a 122 m (400 ft.) course. Drive tractor approximately 3.2 km/h (2 mph) without pulling a load. Select Radar Calibration button as front tires cross mark at one end of course.

   Step 2: Maintain speed. Select Radar Calibration button as front tires cross mark at other end of course.

   Step 3: Calibration is either successful or unsuccessful. Either a Previous button appears to repeat the procedure or an Enter button appears to complete the procedure.

Radar connected to display - Radar connected to display
Calibrate Radar - Calibrate Radar
Start Calibration at beginning of course - Start Calibration at beginning of course
Stop Calibration at end of course - Stop Calibration at end of course
Calibration not successful. Repeat process - Calibration not successful. Repeat process
Calibration successful - Calibration successful
