Install Proper Drawbar Clevis

1. IMPORTANT: Drawbar and clevis category must match between tractor and implement. Category IV or higher drawbar must be used on all 350 and 430 TBT carts.

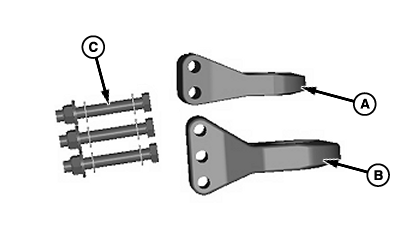

   A59628-UN-21MAR07

   A - Category IV Clevis

   B - Category V Clevis

   C - Clevis Mounting Hardware

   Determine tractor drawbar category rating. Corresponding clevis (A or B) must be installed on implement. See your John Deere Dealer for additional clevis, if needed.

---




2. NOTE: Shim washers (B) must be used to remove excess play between clevis and mounting plates.

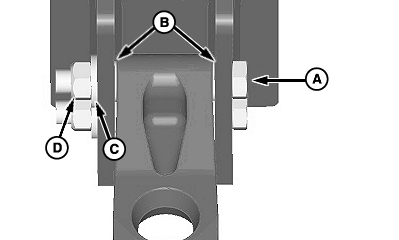

   A59629-UN-21MAR07

   Category IV Clevis Shown

   A - Cap Screw (2 used Cat IV) (3 used Cat V)

   B - Shim Washers (as required)

   C - Flat Washer (2 used Cat IV) (3 used Cat V)

   D - Hex Nut (2 used Cat IV) (3 used Cat V)

   Install correct drawbar clevis using cap screw (A), shim washers (B), flat washer (C) and hex nut (D).

---




3. Tighten cap screws and nuts to specification.

   Item	Measurement	Specification
   Hitch Clevis Hardware	Torque	850 N˙m (626 lb.-ft.)

4. Perform LEVEL TOW-BETWEEN CART procedure to check implement hitch height.
