Configure Tire Speed Sensor

1.
   A59671-UN-14JAN08

   Air Cart Button


   A59325-UN-19FEB07

   Primary Menu Button


   A59672-UN-14JAN08

   Configuration Softkey

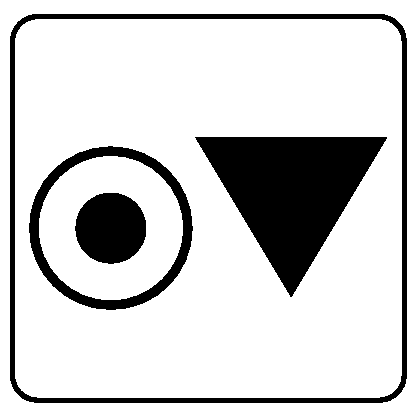

   A59846-UN-14JAN08

   Calibration Button


   A61929-UN-22JAN08

   Repeat Course

   Inflate cart tires to pressure recommended in operator's manual.

---




2. Select primary Menu button >> Air Cart button >> Configuration softkey >> Sensor tab.

3. Select Tire Speed from drop-down box. Current tire speed is displayed under drop-down box.

4. To obtain an approximate calibration, select the calibration input box and enter the travel distance of cart tire.

   Tire Travel Distance
   Tire Size	Travel Distance Centimeters (Inches) per Tire Revolution1
   23.1-26 R3, 10PR	452.1 (178)
   28L-26 R3, 12PR	477.5 (188)
   28L-26 R2, 12PR	508 (200)
   28.1-R26 R1, 12PR	520.7 (205)
   30.5L-32 R3, 12PR	535.9 (211)
   30.5L-32 R2, 14PR	566.4 (223)
   30.5L-32 R1, 14PR	551.2 (217)
   710/70R38 R1W, 2 Star	589.3 (232)
   20.8R-38 R1, 1 Star	536.9 (222)
   18.4R42	553.7 (218)
   20.8R-42 R1, 2 Star	586.7 (231)
   710/70R38 (Russia)	588 (231.5)
   650/85R38	653 (250.1)
   800/70R38	637 (251.1

5. To obtain a more accurate calibration, perform the following:

   1. Properly inflate tires.

   2. Fill tanks one half full of product.

   3. Mark a 122 m (400 ft.) course in the field with soil prepared for seeding as desired.

   4. Select Calibration button.

   5. Approach start of course at seeding speed.

   6. When front tires of tractor cross start of course, select Calibration button.

   7. When front tires of tractor cross end of course, select Calibration button.

   8. If the enter button appears, select it to accept calibration. If repeat course button appears, select it and repeat calibration procedure.

Screen Area Information

Air Cart - Air Cart
Cart - Cart
Configuration - Configuration
Sensor - Sensor
Tire Speed - Tire Speed
Tire - Tire
mph - Miles Per Hour
kph - Kilometers Per Hour
cm / rev - Centimeters Per Revolution
in. / rev - Inches Per Revolution
m - Meter
ft. - Feet
