Attaching Safety Chains

CAUTION:

A60201
A60201-UN-07JUN07

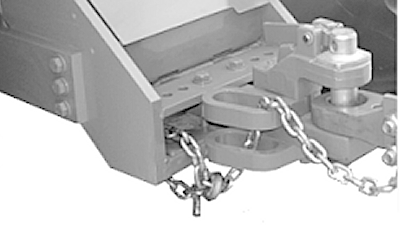

9000 Series Tractor Chain Routing Shown

A60652
A60652-UN-24AUG07

9000T Series Tractor Chain Routing Shown

N45759
N45759-UN-23NOV93

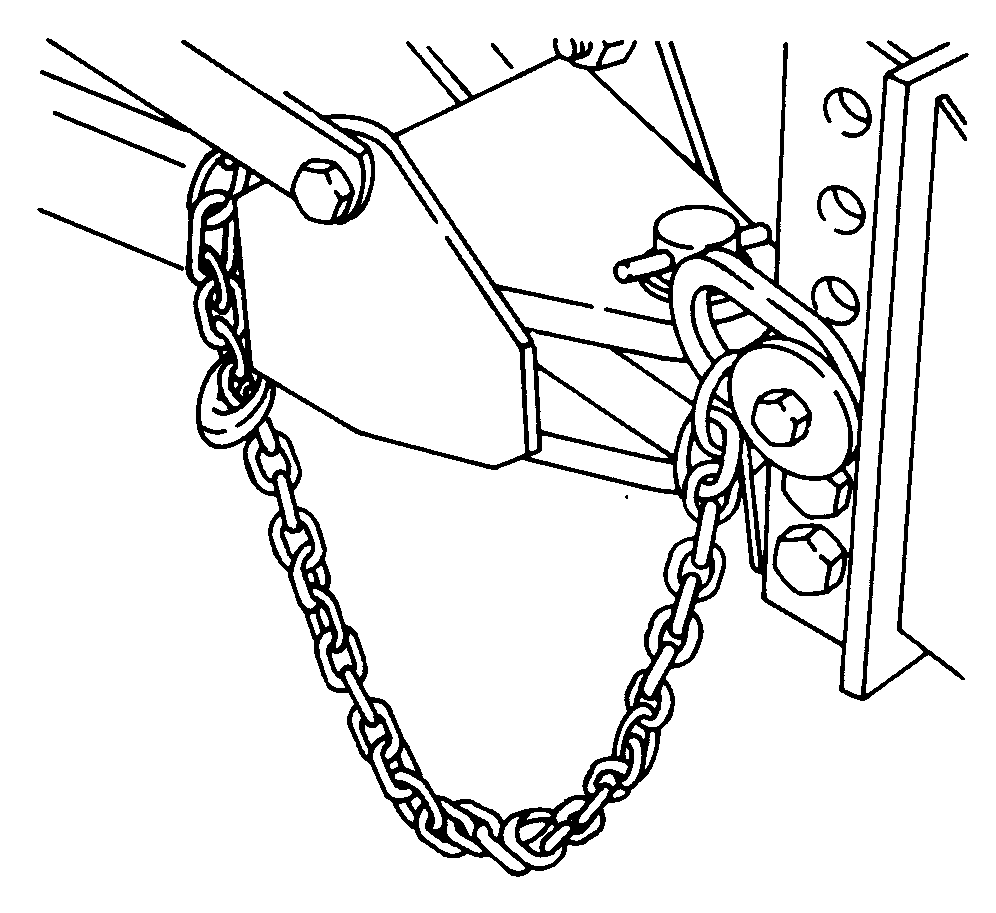

Air Tool to Seed Cart

Safety chains help control drawn equipment in case accidental separation from drawbar occurs during transport. A runaway machine could cause severe injury or death to someone. Provide only enough slack in chain to permit turning.

NOTE: Chain attachment location can vary with different tractors. See tractor operator’s guide for specific information.

Inspect safety chain rating tag at each hitch. Relocate chains so highest strength chain is at implement-to-tractor hitch. Verify that chain capacities are equal to or greater than combined weight of following train. Larger chains can be purchased at your John Deere dealer.

OUO6435,000232F-19-20140313
