Clean Air Tower—Every 50 Hours

  1. NOTE: When using finer products like fertilizer or canola and during more humid conditions, tower assembly will require more frequent cleaning.

    A75855
    A75855-UN-30AUG12

    A75856
    A75856-UN-30AUG12

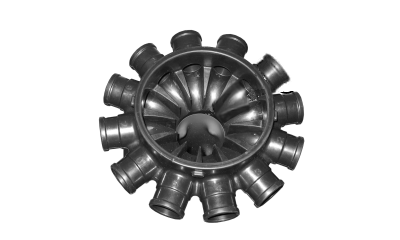

    Interior of Tower

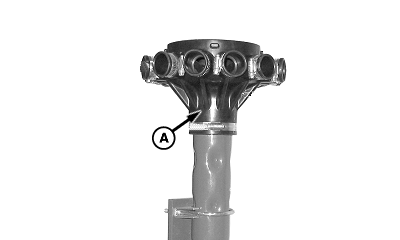

    A - Tower Assembly

    Ensure fan is off before opening tower cap.


  2. Clean off exterior of tower assembly (A).

  3. Remove tower cap. Clean interior of tower assembly.

WP29706,00003BC-19-20120830
