After First 4 and 8 Hours of Operation

Tighten Rear Wheel Retaining Bolts


A-500 N·m (370 lb-ft)
B-310 N·m (230 lb-ft)

LX009818

AG,OU12401,14 -19-12DEC99-1/3

Tighten Front Wheel Retaining Bolts/Nuts

(Bolt torques vary depending on tractor equipment)


A-250 N·m (185 lb-ft)
B-300 N·m (220 lb-ft)
C-Screws of class 8.8: 250 N·m (185 lb-ft); Screws of class 10.9: 310 N·m (230 lb-ft)

LX000558
LX000559

AG,OU12401,14 -19-12DEC99-2/3

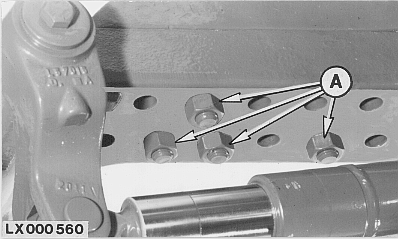

Adjustable Front Axle

Tighten attaching screws (A) to 400 N·m (300 lb-ft).

LX000560

AG,OU12401,14 -19-12DEC99-3/3
