Starting the Engine

CAUTION: Never operate the engine in a closed building. Make sure there is plenty of ventilation.

Danger of asphyxiation!

1. Set selective control valve lever (A) to neutral position.

2. Move hand throttle lever (B) to a medium speed setting (first third of lever travel).

3. Set gear shift lever to neutral position.

4. Turn key in main switch (D) clockwise to end position. Release key as soon as engine starts.

Do not operate starter for more than 30 seconds at a time. Turn main switch key to "OFF" position and wait at least one minute before trying again.

Do not adjust hand throttle lever. Run engine for a few minutes. At temperatures below 0° C (32° F), extend warm-up period accordingly.

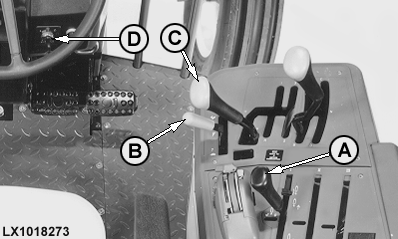

A-Selective control valve lever
B-Hand throttle lever
C-Gear shift lever
D-Main switch

AG,OU12401,16 -19-12DEC99-1/1
