Checking Engine Crankcase Oil Level

If oil level is at or below "ADD"-mark on dipstick, add sufficient oil to bring level to "XXX"-mark on dipstick.

Do not operate engine with oil level at or below "ADD"-mark on dipstick.

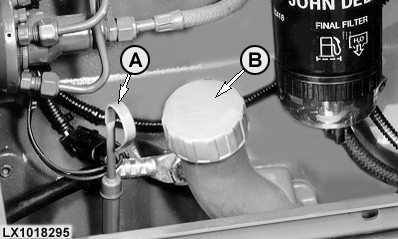

A-Dipstick
B-Oil filler cap

LX1018295
FD000047

AG,OU12401,36 -19-14DEC99-1/1
