Adjusting Front Wheel Tread With Adjustable Rims
|
|
Front wheel tread can be adjusted by replacing or reversing the wheel rims. IMPORTANT: Nuts must be installed on outside of wheel. In addition the complete wheel can be reversed and installed on the opposite side of the tractor. The arrow |
on side wall of tire must then point in the direction of forward travel.
NOTE: Wheel tread on tractors equipped with a front loader must not exceed 1.80 m (71 in.). |

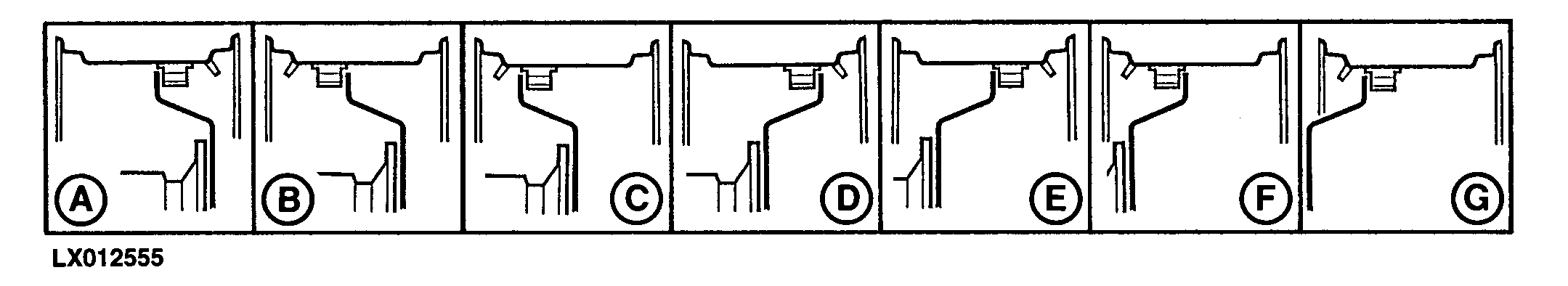

| Position of Rims and Wheel Disks | ||||||||
|---|---|---|---|---|---|---|---|---|
| Tires | A | B | C | D | E | F | G | |
| Standard tread widths With 60 mm (2.36 in.) spacers |
13.6-38 12.4-24 13.6-38 12.4-24 |
- - 1534 mm (60.4 in.) x 1540 mm (60.6 in.) x |
1514 mm (59.6 in.) - 1516 mm (59.7 in.) x 1634 mm (64.3 in.) x 1636 mm (64.4 in.) x |
1614 mm (63.5 in.) x 1616 mm (63.6 in.) x 1734 mm (68.3 in.) x 1736 mm (68.3 in.) x |
1714 mm (67.5 in.) x 1720 mm (67.7 in.) x 1834 mm (72.2 in.) x 1840 mm (72.4 in.) x |
1814 mm (71.4 in.) x 1820 mm (71.7 in.) x 1934 mm (76.1 in.) x 1940 mm (76.4 in.) x |
1914 mm (75.4 in.) x 1916 mm (75.4 in.) x 2034 mm (80.1 in.) x 2036 mm (80.2 in.) x |
2014 mm (79.3 in) x 2016 mm (79.4 in.) x 2134 mm (84.0 in) x 2136 mm (84.1 in.) x |
