Fuses

The main fuse is located underneath the dashboard.

The fuse for the electrical starting aid heating element is on the right side of the engine block.

F01-150A Battery circuit (main power supply)

F02-70A Electrical starting aid

AG,OU12401,63 -19-19DEC99-1/3

IMPORTANT: To prevent unnecessary damage to the electrical system, never use a fuse with a rating higher than the one already installed.

CAUTION: Disconnect the battery ground cable (-).

Remove dashboard trim and open the cover at the side.

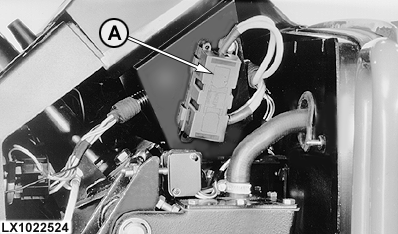

Remove cover (A).

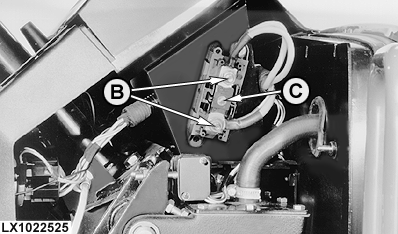

Remove the two hex nuts (B). Replace fuse (C).

Tighten the hex. nuts on the fuse to 15 N·m (11 lb-ft).

A-Cover
B-Hex Nut
C-Fuse

AG,OU12401,63 -19-19DEC99-2/3

The other fuses are located in a load center (fuse box).

A-Load Center
