Changing Oil in MFWD Final Drives

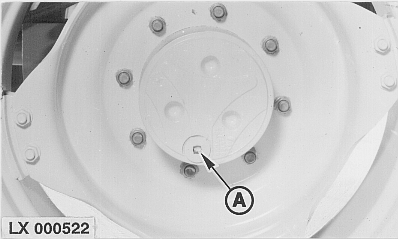

1. Turn wheel until drain screw (A) is at the bottom. Remove drain screw and drain oil into a suitable container.

2. Turn wheel 180° and fill with approx. 0.80 liters (0.21 U.S. gal) fresh oil through drain screw bore.

3. Check oil level, reinstall plug and tighten to 150 N·m (110 lb-ft.).

AG,OU12401,96 -19-07JAN00-1/1
