Opening the Hood

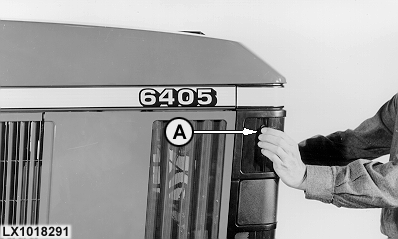

Press catch (A) and pull hood forward.

LX1018291

LX,OMSERV015893 -19-01DEC97-1/2

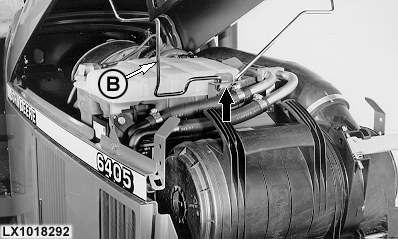

Open hood and engage support (B); see arrow.

To close, raise hood and disengage support (B). Lower the hood and push it back until the hood engages.

LX1018292

LX,OMSERV015893 -19-01DEC97-2/2
