Adjusting Front Wheel Tread with Adjustable Rims (8-position)
|
|
Front wheel tread can be adjusted by replacing or reversing the wheel rims. In addition the complete wheel can be reversed and installed on the opposite side of the tractor. Change the wheels from one side to the other, and make sure |
the arrows on the side walls of the tires are still pointing forward.
NOTE: Wheel tread on tractors equipped with a front loader must not exceed 1.80 m (71 in.). |

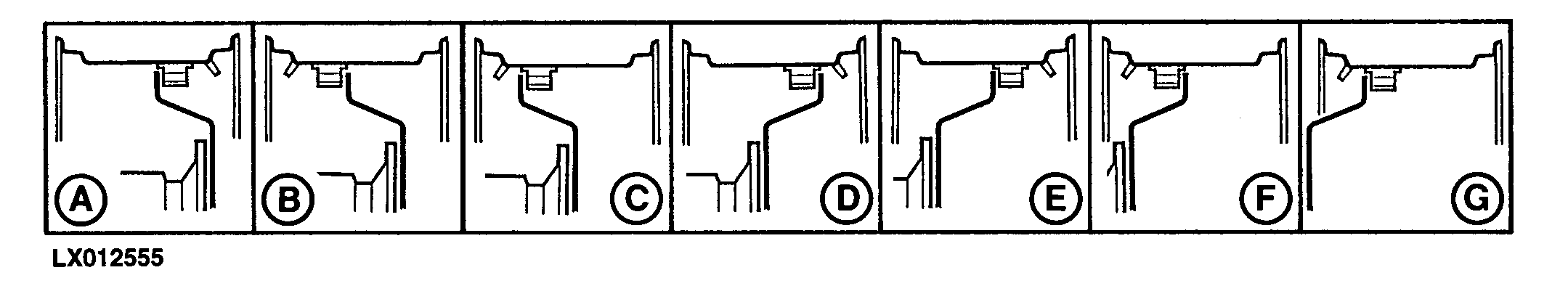

| Position of rims and wheel disks |
|||||||
|---|---|---|---|---|---|---|---|
| Tire size |
B |
C |
D |
E |
F |
G |
|
| Narrow-track axle | 1245 mm | 1345 mm | 1445 mm | 1545 mm | |||
| (49.0 in.) | (53.0 in.) | (56.9 in.) | (60.8 in.) | ||||
| 12.4-24 | x | x | x | x | |||
| 12.4-28 |
x |
x |
x |
x |
|||
| Standard axle | 1516 mm | 1616 mm | 1720 mm | 1820 mm | 1916 mm | 2016 mm | |
| (59.7 in.) | (63.6 in.) | (67.7 in.) | (71.7 in.) | (75.4 in.) | (79.4 in.) | ||
| 14.9-24 | - | x | x | x | x | x | |
| 16.9-24 | - | x | x | x | x | x | |
| 380/70-24 | - | x | x | x | x | x | |
| 420/70-24 | - | x | x | x | x | x | |
| 480/65-24 | - | - | x | x | x | x | |
| 480/70-24 | - | - | x | x | x | x | |
| 540/65-24 | - | - | - | x | x | x | |
| 13.6-28 | - | x | x | x | x | x | |
| 14.9-28 | - | - | x | x | x | x | |
| 380/70-28 | - | x | x | x | x | x | |
| 420/70-28 | - | - | x | x | x | x | |
| 480/65-28 | - | - | x | x | x | x | |
| Other | x | x | x | x | x | x | |
|
NOTE: Your John Deere dealer can supply you with 60 mm (2.36 in.) spacers. Spacers allow the tread widths listed here to be extended by |
120 mm (4.72 in.). With certain tire sizes and spacers, position A (see drawing) may be achieved. |
AG,OU12401,294 -19-13MAR02-1/1 |
