Adjusting Front Wheel Tread with Adjustable Rims (16-position)
|
|
Front wheel tread can be adjusted by replacing or reversing the wheel rims. Additional tread widths can be achieved by using spacers. In addition the complete wheel can be reversed and installed on the opposite side of the tractor. Change |
the wheels from one side to the other, and make sure the arrows on the side walls of the tires are still pointing forward.
NOTE: Wheel tread on tractors equipped with a front loader must not exceed 1.80 m (71 in.). |

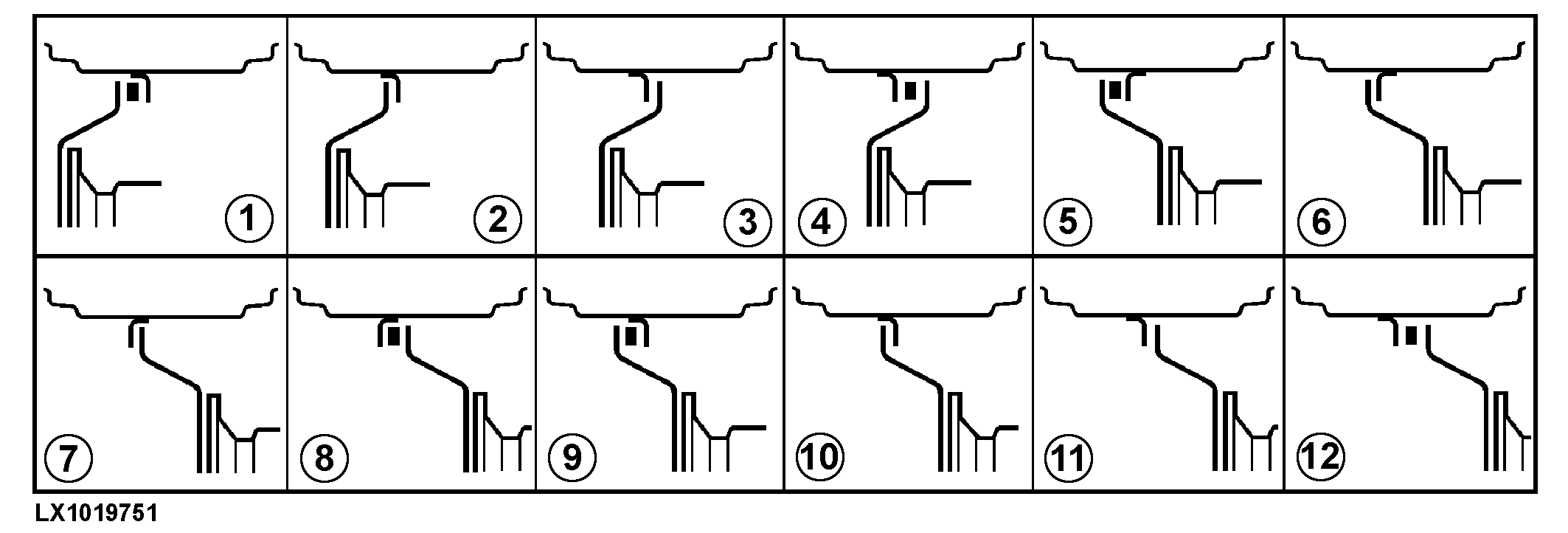

| Positions of rims, wheel disks and spacers |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
| mm | 1522 | 1552 | 1584 | 1614 | 1718 | 1748 | 1782 | 1812 | 1922 | 1952 | 1984 | 2014 |
| (in.) | (59.9) | (61.1) | (62.4) | (63.5) | (67.6) | (68.8) | (70.2) | (71.3) | (75.7) | (76.9) | (78.1) | (79.3) |
| Tire size: | ||||||||||||
| 14.9-24 | - | - | - | x | x | x | x | x | x | x | x | x |
| 16.9-24 | - | - | - | x | x | x | x | x | x | x | x | x |
| 380/70-24 | - | - | - | x | x | x | x | x | x | x | x | x |
| 420/70-24 | - | - | - | x | x | x | x | x | x | x | x | x |
| 480/65-24 | - | - | - | - | x | x | x | x | x | x | x | x |
| 480/70-24 | - | - | - | - | x | x | x | x | x | x | x | x |
| 540/65-24 | - | - | - | - | - | - | - | x | x | x | x | x |
| 14.9-28 | - | - | - | x | x | x | x | x | x | x | x | x |
| 380/70-28 | - | - | - | x | x | x | x | x | x | x | x | x |
| 420/70-28 | - | - | - | - | x | x | x | x | x | x | x | x |
| 480/65-28 | - | - | - | - | x | x | x | x | x | x | x | x |
| Other | x | x | x | x | x | x | x | x | x | x | x | x |
AG,OU12401,295 -19-13MAR02-1/1 |
