Check Engine Speeds

Warm up engine and use the rev counter to check engine speeds. The following guidelines apply:

Fuel injection pump Slow idle Fast idle
Mechanical pump 875-925 rpm 2480-2510 rpm
Electronic pump 845-855 rpm 2455-2465 rpm



Have adjustments carried out by your John Deere dealer.

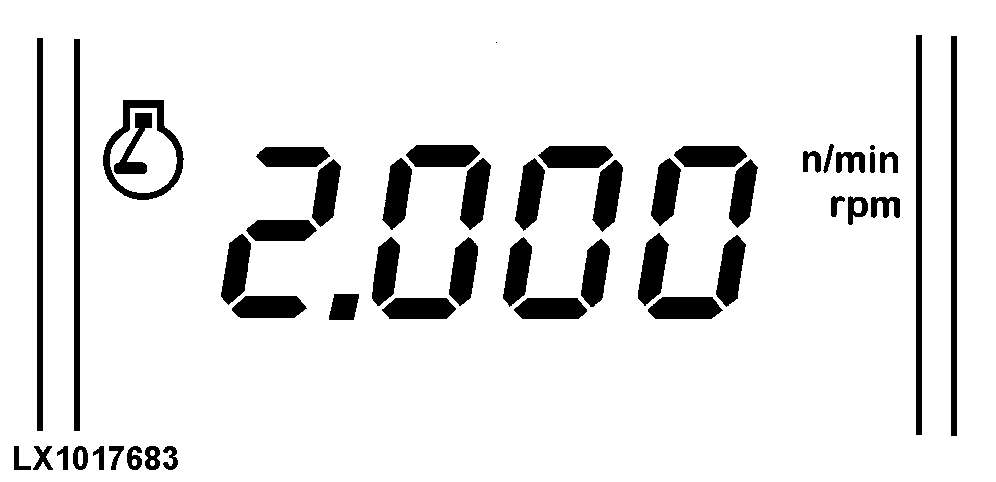

LX1017683

OU12401,000092C -19-01MAY01-1/1
