Changing Transmission/Hydraulic Oil (Tractors with AutoPowr)

1. Start engine and operate several hydraulic functions to heat up oil.

2. Park tractor so that it is level. Lower draft links and front-mounted implements.

3. Stop the engine and remove the key.

4. Apply handbrake (transmission in "P").

5. Remove drain screws (A).

6. Replace transmission/hydraulic oil filter elements (B).

7. Before refilling with fresh oil, replace seals and tighten drain screws to 50 N·m (35 lb-ft).

8. Add transmission/hydraulic oil to the transmission case.

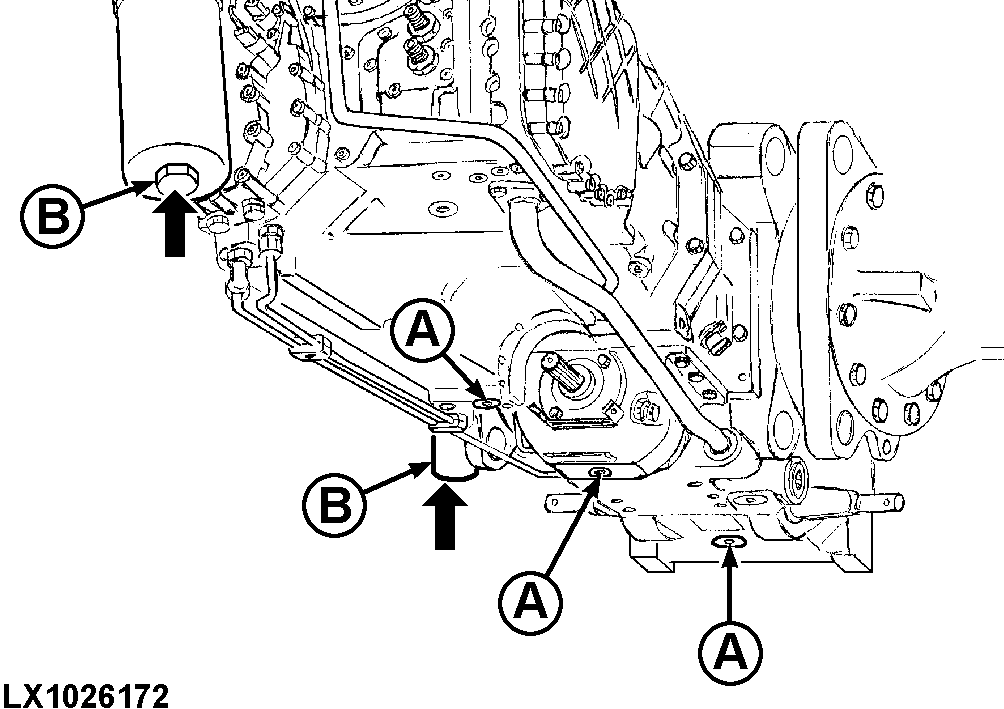

LX1026172
LX1027109


A-Drain screws
B-Transmission/hydraulic oil filters
D-Additional oil reservoir

Capacities
AutoPowr... 60 liters (15.9 U.S. gal.)
Extra for front-wheel drive...  3 liters (0.8 U.S.gal.)
Extra for TLS axle...  3 liters (0.8 U.S.gal.)
Extra for additional oil reservoir... 12 liters (3.2 U.S. gal.)



Run engine briefly and operate hydraulic functions. Stop the engine.

Wait for between 10 and 15 minutes before checking the oil level. It should be between the marks on the dipstick. If not, correct oil level.

OU12401,000092E -19-02FEB02-1/1
