Changing the Fuel Filter

NOTE: Depending on engine type, one or two fuel filters may be equipped.

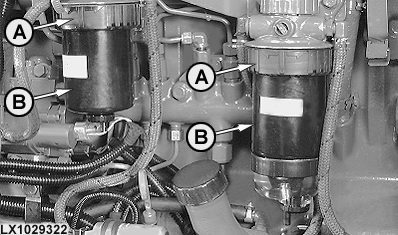

1. Unfasten filter retaining ring (A) and remove filter (B). Seal old filter with cover of the new one.

2. Remove water trap and install it on new filter.

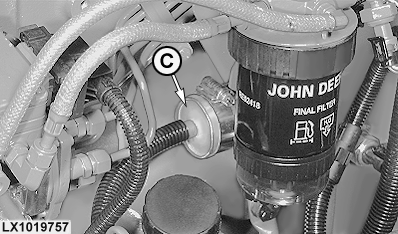

3. On tractors with Bosch VP44 injection pump, also replace second filter (C).

4. Attach new filter. The marks on the filter must be aligned with those on the housing.

5. Tighten retaining ring (A) until it can be heard to engage.

6. Turn key in main switch to the right as far as the first switch position so that the fuel transfer pump is operating. Keep the pump running for approx. 20 seconds.


A-Retaining ring
B-Filter element
C-Second filter (tractors with Bosch VP44 injection pump only)

LX1029322
LX1019757

OU12401,0000B87 -19-01JUL02-1/1
