1-This light comes on when the differential lock is engaged.

2-This light comes on when front-wheel drive is selected.

3-The handbrake indicator light glows when handbrake is applied and engine is running. In addition, an acoustic warning signal may be installed.

4-This light comes on when the rear PTO is selected.

5-This warning light glows when transmission/hydraulic oil temperature is too high.

6-If this warning light glows, transmission/hydraulic oil pressure is too low. See your John Deere dealer.

7-If engine oil pressure warning light glows with engine running, shut off engine and check the level of engine oil.

8-The full beam indicator light will glow whenever the headlights are switched on at full beam.

9-If alternator indicator light glows with engine running, this indicates a defect at alternator. Check alternator

10-If air cleaner indicator light glows with engine running, the air cleaner element must be cleaned or replaced.

11-This light glows when the transmission oil filter is clogged or the oil temperature is too low.

12-This light comes on when the work lights are selected.

13-The flashing indicator light for tractor starts flashing when turn-signal or hazard warning lights are switched on.

14-The flashing indicator lights for trailer start flashing when turn-signal or hazard warning lights are switched on.

Bulb test: As the engine is started, indicator lights 5, 6, 7, 10 and 11 should glow for approx. 1 second. If this is not the case, a defective bulb or blown fuse may be the cause. Check and replace parts as necessary.

The indicator lights should go out as soon as the engine is running.

OU12401,0000CF2 -19-01MAR03-1/9

On tractors with electronic injection pump, this light comes on when the main (key) switch is turned one position to the right. Wait till the light goes out before starting the engine.

On other tractors, this light remains on while the electrical starting aid is actuated.

OU12401,0000CF2 -19-01MAR03-2/9

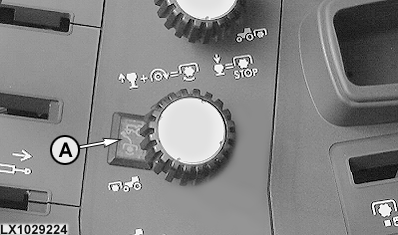

Light (A) comes on when the front PTO is engaged.

OU12401,0000CF2 -19-01MAR03-3/9

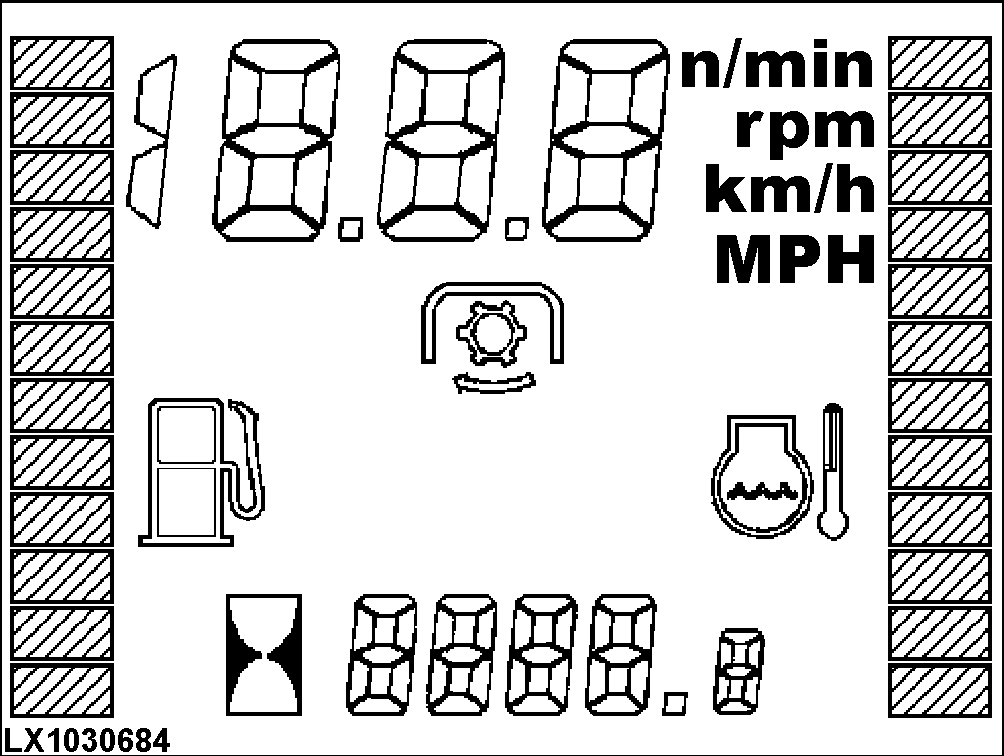

The digital display shows travel speed, PTO speed, hours of operation, coolant temperature and the amount of fuel left in reserve.

OU12401,0000CF2 -19-01MAR03-4/9

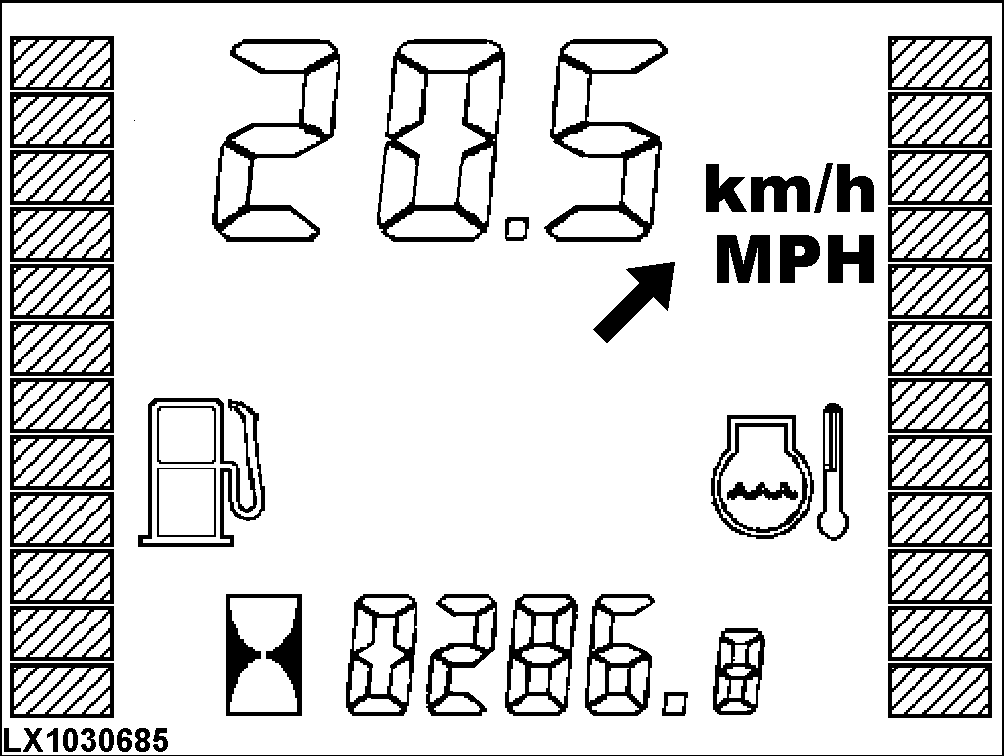

Provided that the rear PTO is switched off, "km/h" or "MPH" appears on the display and travel speed is displayed.

OU12401,0000CF2 -19-01MAR03-5/9

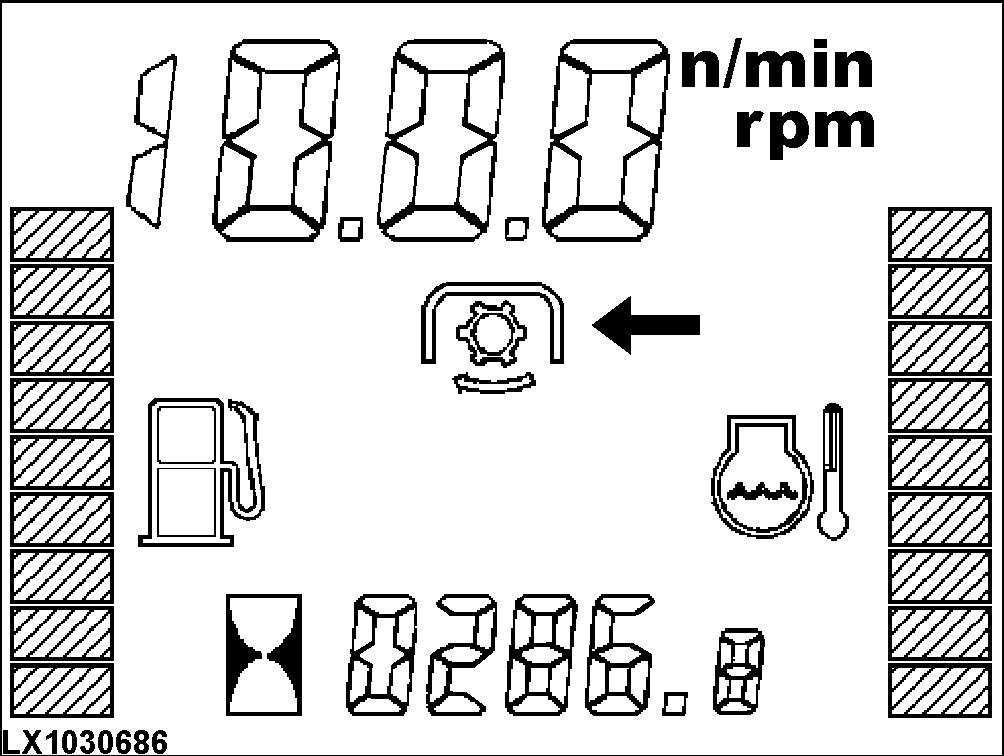

When the rear PTO is switched on, the PTO symbol appears. PTO speed is displayed.

OU12401,0000CF2 -19-01MAR03-6/9

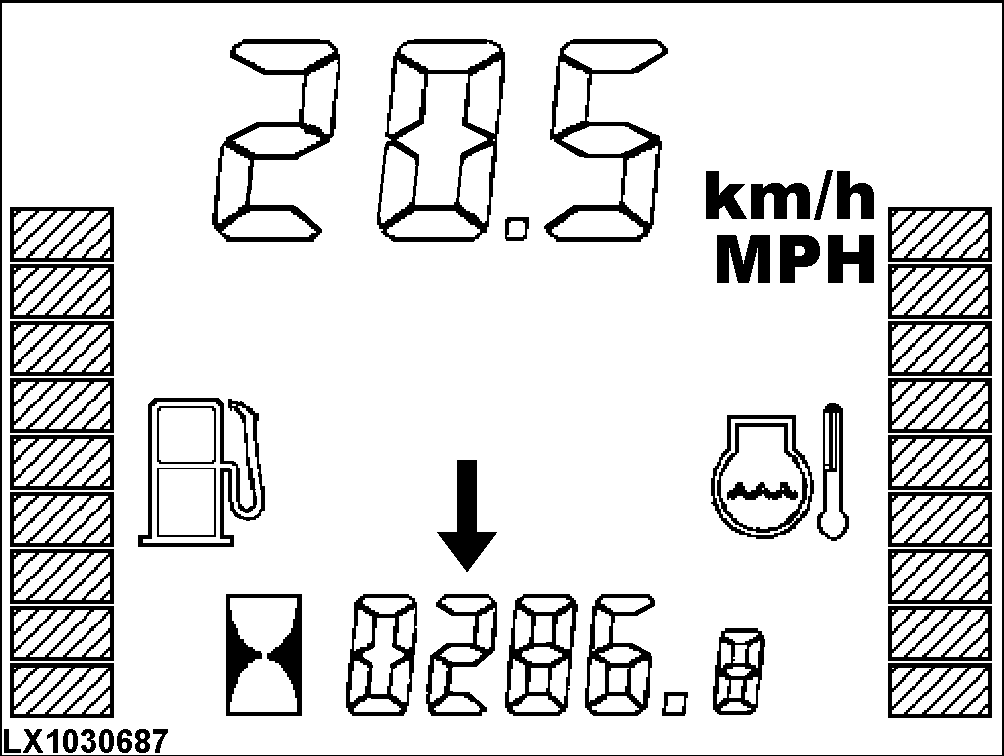

When the ignition is switched on, the display shows the number of hours operated by the engine.

OU12401,0000CF2 -19-01MAR03-7/9

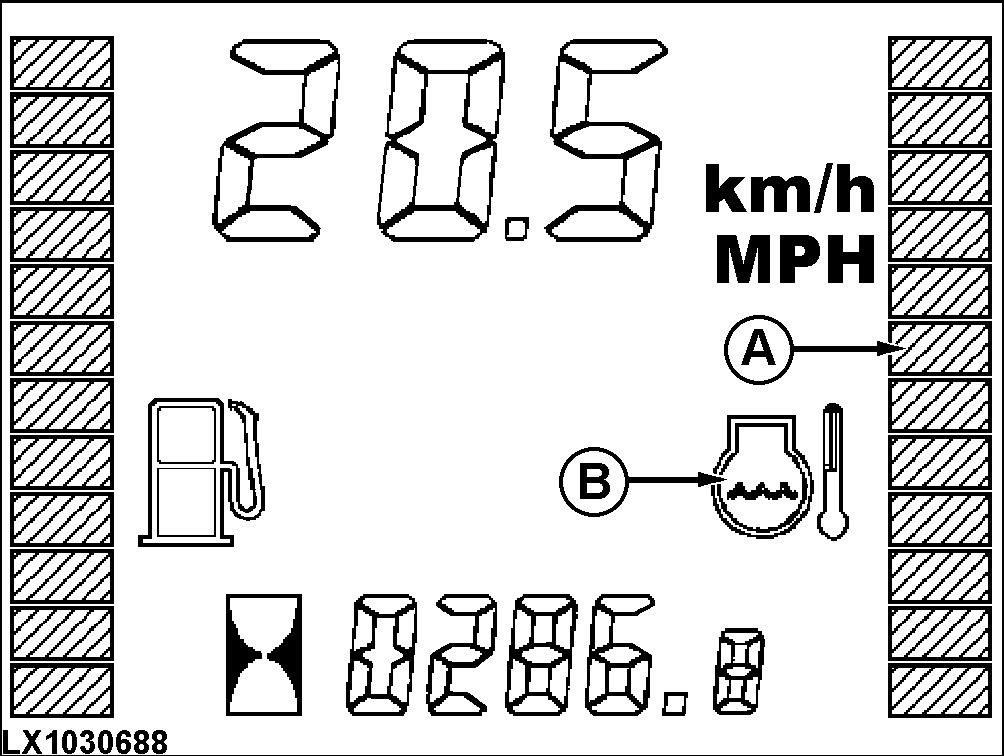

Temperature is represented by a vertical bar with a total of 12 blocks (A):

1-10 blocks = temperature is normal.

11 (flashing) blocks = coolant is too hot. Reduce load on engine or shift to a lower gear.

12 (flashing) blocks = coolant is very hot. Shut off the engine and rectify the cause of the overheating (coolant level too low, dirty radiator or clogged screen).

If none of the blocks appear on the display and icon (B) is flashing, then the temperature sensor is defective.

OU12401,0000CF2 -19-01MAR03-8/9

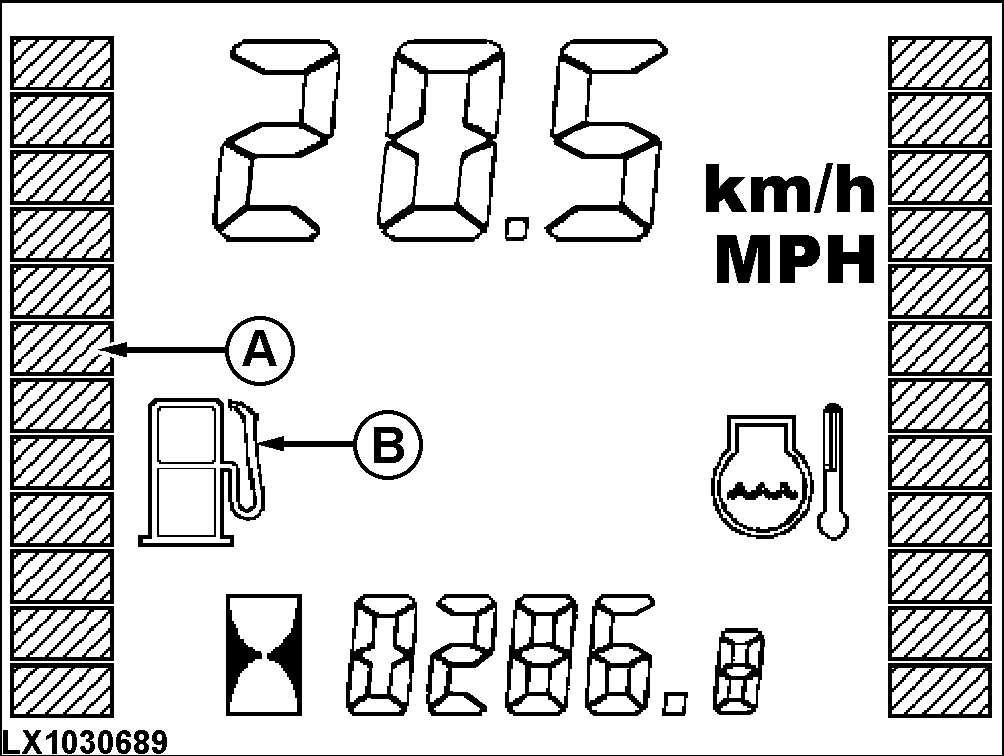

The amount of fuel left in reserve is represented by a vertical bar with a total of 12 blocks (A):

3-12 blocks = sufficient fuel left in reserve.

2 blocks = fuel reserve warning.

1 (flashing) block = less than 8% fuel left in reserve.

If none of the blocks appear on the display and icon (B) is flashing, then the tank sensor is defective.

NOTE: Never run the tank completely dry, otherwise you will have to bleed the fuel system.

OU12401,0000CF2 -19-01MAR03-9/9
