Limiting Front Wheel Steering Angle

With certain tread widths, the front wheel steering angle must be limited to less than 50° (see table).

Adjust dimension (L) to one of the values shown in the table.

NOTE: Steering angle must be the same on both sides.

Tighten lock nut (K) to 200 N·m (150 lb-ft).

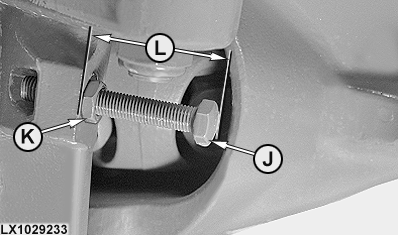

LX1029233


J-Steering angle adjusting screw
K-Lock nut
L-Adjusting dimension


Position of rims and wheel disks (see "Adjusting Front Wheel Tread")
  8-position rims A B C D E F G
  16-position rims   1 4 5 8 9 12


Dim. L
 Dim. L
 Dim. L
 Dim. L
 Dim. L
 Dim. L
 Dim. L
  Tire size mm in. mm in. mm in. mm in. mm in. mm in. mm in.
Reversible wheels 10.5/80-18 22 0.9 22 0.9
  380/70-24 50 2.0 22 0.9
  12.4-28 62 2.4 22 0.9

Narrow-track axle 12.4-24         88 3.5 76 3.0 52 2.0 40 1.6

12.4-28



88
 3.5
 76
 3.0
 52
 2.0
 40
 1.6

Adjustable wheels 12.4-24 - - 62 2.4 52 2.0 36 1.4 22 0.9 22 0.9 22 0.9
  13.6-24 - - 73 2.9 64 2.5 50 2.0 36 1.4 22 0.9 22 0.9
  14.9-24 - - - - 71 2.8 62 2.4 48 1.9 38 1.5 24 0.9
  16.9-24 - - - - 78 3.0 71 2.8 55 2.2 45 1.8 34 1.3
  380/70-24 - - - - 64 2.5 55 2.2 41 1.6 29 1.1 22 0.9
  420/70-24 - - - - 73 2.9 59 2.3 48 1.9 34 1.3 24 0.9
  480/65-24 - - - - - - 75 3.0 66 2.6 52 2.0 41 1.6
  480/70-24 - - - - - - 78 3.1 73 2.9 59 2.3 48 1.9
  540/65-24 - - - - - - - - 80 3.1 66 2.6 57 2.2
  11.2-28 - - 64 2.5 48 1.9 34 1.3 22 0.9 22 0.9 22 0.9
  12.4-28 - - 71 2.8 64 2.5 50 2.0 34 1.3 24 0.9 22 0.9
  13.6-28 - - - - 73 2.9 59 2.3 48 1.9 36 1.4 27 1.1
  14.9-28 - - - - - - 68 2.7 55 2.2 45 1.8 34 1.3
  380/70-28 - - - - 73 2.9 64 2.5 52 2.0 41 1.6 27 1.1
  420/70-28 - - - - - - 66 2.6 57 2.2 45 1.8 36 1.4

480/65-28
 -
 -
 -
 -
 -
 -
 78
 3.1
 73
 2.9
 59
 2.3
 48
 1.9



OU12401,001040B -19-01JAN03-1/1
