Changing Oil In Front-Wheel Drive Axle Housing

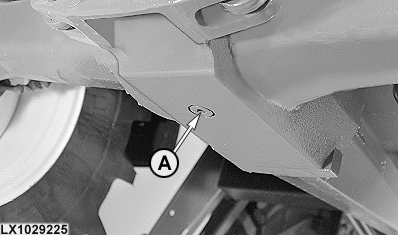

1. Remove drain screw (A) and drain oil into a suitable container.

2. Re-install drain screw and tighten to 150 N·m (110 lb-ft).

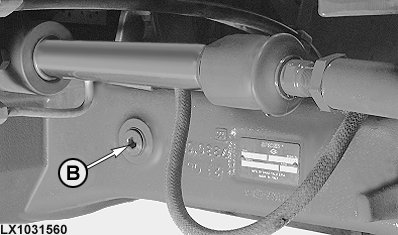

3. Remove oil level/filler plug (B). Fill with fresh oil. The oil level must be up to lip of filler neck. Re-install plug.

For capacities, see "Specifications".

NOTE: Location of screws varies depending on axle type.

LX1029225
LX1031560

OU12401,001041A -19-01JAN03-1/1
