Changing Oil In Front-Wheel Drive Final Drives

causym CAUTION: On axles with brake: If final drives are hot, oil is under pressure. Remove drain screws slowly.

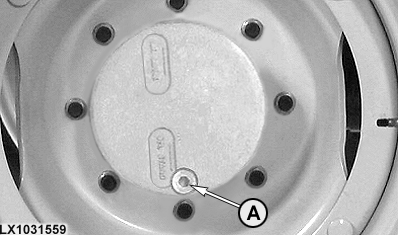

1. Turn wheel until drain screw (A) is at the bottom. Remove drain screw and drain oil into a suitable container.

2. Turn the wheel through 90° so that the "Ölstand" mark is at the bottom (see "Service - Every 250 Hours"), and add oil at the hole for the screw plug. Oil should be level with plug bore.

3. Re-install drain screw and tighten to 150 N·m (110 lb-ft).

For capacities, see "Specifications".

LX1031559

OU12401,001041B -19-01JAN03-1/1
