Swinging Trailer Hitch

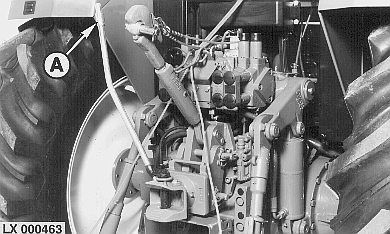

Trailer hitch pin (A) can be removed from the operator's seat.

IMPORTANT: Use trailer hitches with a towing eye diameter of 40 mm (1-37/64 in.) only.

Maximum permissible static vertical loads and towable drawbar loads are stated in the "Specifications" section.

OU12401,0010423 -19-01FEB03-1/1
