Stabilizer Bar

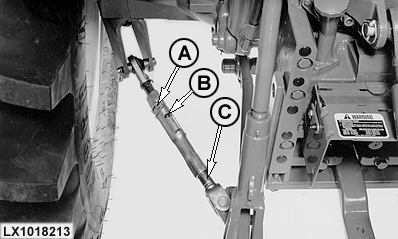

The bar can be adjusted to suit any category by means of pin (A) and/or threaded rod (B). Alternative bolt position (C) also alters the category. The different categories are marked on the threaded rod by grooves.

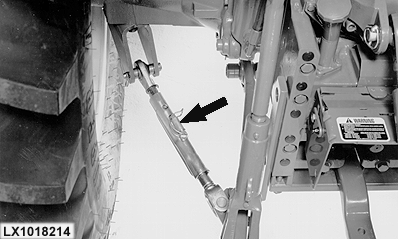

If pin (A) is not required (it must be removed to allow the draft links to sway), it can be stored in the tubular retainer.

LX1018213
LX1018214

LX,OMREG011309 -19-20SEP97-1/1
