Light Switch

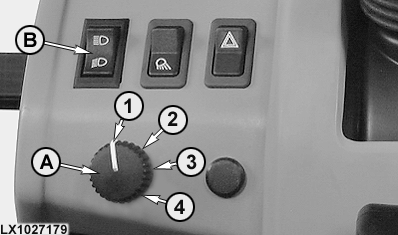

Light switch (A) can be set to the following positions:

  • 1 = Light switch in "off" position
  • 2 = Parking lights "on"
  • 3 = Headlights "on"
  • 4 = Headlights and worklights "on"

Switch headlights to "full beam" or "dipped beam" position by means of switch (B).

  • Switch down = Dipped beam
  • Switch up = Full beam

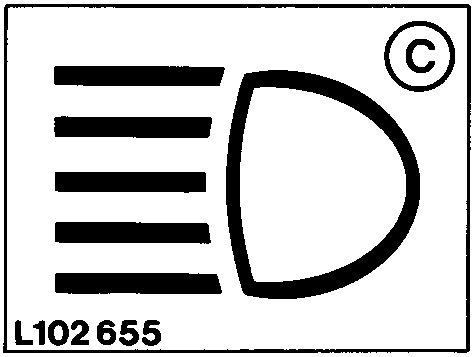

Indicator light (C) will glow when headlight switch is in "full beam" position.

LX1027179
L102655

OU12401,0000AF0 -19-01JUL02-1/1
