Windshield Wiper and Washer System

Windshield wiper switch (A) has two positions:

• 1 = Slow wipe
• 2 = Fast wipe

The windshield washer system is operated by means of switch (A) (push towards cab roof).

Add a suitable anti-freeze solution to water in reservoir (B) if temperature is liable to drop below freezing point.

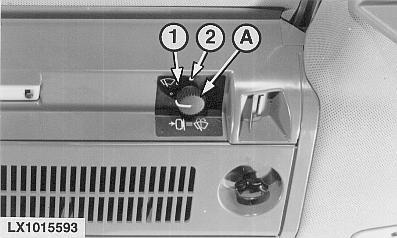

A-Switch for windshield wiper

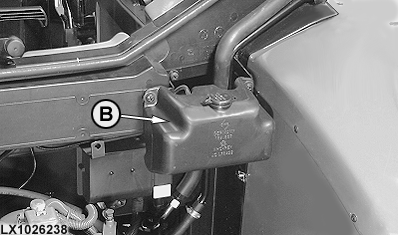

B-Reservoir for windshield washer system

OU12401,0000AF5 -19-01JUL02-1/1
