Neutral Start Circuit

Tractors with SyncroPlus transmission:

1. Depress the clutch pedal.

2. Move range shift lever (A) to neutral.

3. Move gear shift lever (B) to any gear.

4. Turn key in main switch as far as it will go to the right. The starter motor must NOT turn over. If it does, see your John Deere dealer immediately.

5. Repeat the test in all the other gears.

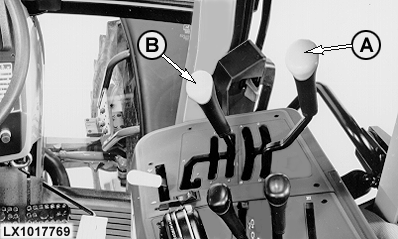

LX1017769

OU12401,0000B68 -19-01JUL02-1/3

Tractors with Power Reverser transmission:

1. Depress the clutch pedal.

2. Move range shift lever (A) to neutral.

3. Move reverse drive lever (B) to any travel direction (forward or reverse).

4. Turn key in main switch as far as it will go to the right. The starter motor must NOT turn over. If it does, see your John Deere dealer immediately.

5. Repeat the test in the other direction of travel.

LX1029154
LX1018202

OU12401,0000B68 -19-01JUL02-2/3

Tractors with PowrQuad transmission:

1. Depress the clutch pedal.

2. Move range shift lever (A) to neutral.

3. Move reverse drive lever (B) to "forward" position.

4. Turn key in main switch as far as it will go to the right. The starter motor must NOT turn over. If it does, see your John Deere dealer immediately.

5. Repeat the test in the "reverse" position.

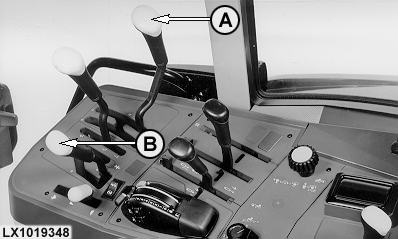

LX1019348

OU12401,0000B68 -19-01JUL02-3/3
