Shifting SYNCROPLUS™ Transmission / Power Reverser Transmission

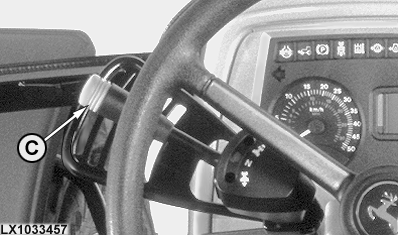

The transmission is controlled via range shift lever (A) and gear shift lever (B). An additional control on the Power Reverser transmission is reverse drive lever (C).

IMPORTANT: Engage park lock only when the tractor is stationary.

NOTE: After the engine has been started, wait for 5 seconds before moving the gear lever (B) or reverse drive lever (C) out of neutral position.

Optimum Gear-Shifting for Driving under Load (Transport):

1. Select a range suitable for driving away under load.
2. Engage the first gear.
3. Drive away and change up through the ranges until the top range is reached.
4. Change up through the gears.

SYNCROPLUS is a trademark of Deere & Company

OU12401,0000ED6 -19-01JUL03-1/1
