After the First 4 and 8 Hours of Operation

Tighten rear wheel retaining bolts


A-500 N?m (370 lb-ft)
B-250 N?m (185 lb-ft)

LX1019752

OU12401,0001026 -19-03DEC03-1/3

Tighten front wheel retaining bolts/nuts

(Torques vary depending on tractor equipment)


A-250 N?m (185 lb-ft)
B-480 N?m (355 lb-ft)
C-250 N?m (185 lb-ft)

LX000558
LX1029211

OU12401,0001026 -19-03DEC03-2/3

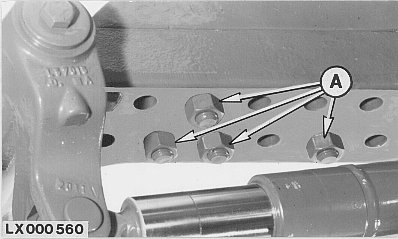

Adjustable front axle

Tighten attaching screws (A) to 400 N?m (300 lb-ft).

LX000560

OU12401,0001026 -19-03DEC03-3/3
