Super Comfort Seat I

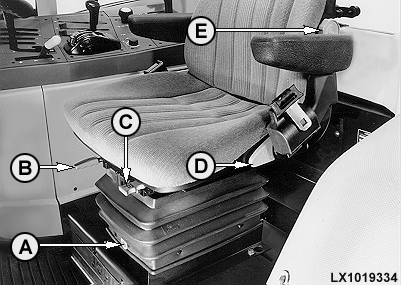

To adjust height and weight when a load is applied to the seat, push or pull button (A). When the seat is set to the weight of the operator, a green mark appears in the display window.

Fore/aft spring:

• Lever (C) to the right - Fore/aft suspension
• Lever (C) to the left - No fore/aft suspension

A-Button for height and weight adjustment
B-Fore-and-aft adjustment
C-Lever for fore/aft spring
D-Backrest tilt
E-Lumbar support adjustment

OU12401,0001096 -19-16APR04-1/1
