Super Comfort Seat II

To adjust the seat upward, raise it until it clicks into place (maximum of 3 detent positions). To adjust downward, raise the seat to the stop position and then lower it.

Adjust fore/aft spring:

• Lever (C) to the front - No fore/aft suspension
• Lever (C) to the rear - Fore/aft suspension

To lower the armrest through 30°, press the armrest tilt adjuster (E) into the armrest.

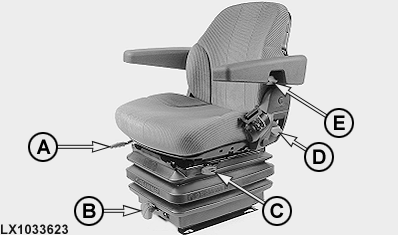

A-Fore-and-aft adjustment
B-Crank for adjusting seat to suit operator's weight
C-Lever for fore/aft spring
D-Backrest tilt
E-Armrest tilt adjustment

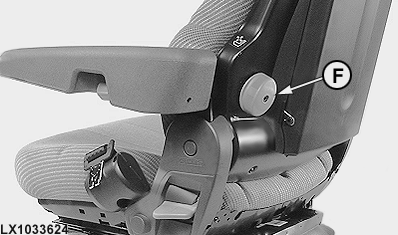

F-Lumbar support adjustment

OU12401,0001097 -19-16APR04-1/1
