Air Comfort Seat

After starting the engine, release lever (C) briefly to bring the seat to its central position.

2. Adjust height

To adjust the height, pull lever (C) upward or push it down.

3. Adjust fore/aft spring

• Lever (B) to the front - No fore/aft suspension
• Lever (B) to the rear - Fore/aft suspension

IMPORTANT: Before turning the seat, always switch off the engine. This prevents the tractor or implements from moving if any of the controls are accidentally moved.

The seat swivel is operated by means of lever (D) as follows:

Lift the lever up. The seat turns 15° or 20° to the left and right. The seat can lock at intermediate positions.

To lower the armrest through 30°, press the armrest tilt adjuster (F) into the armrest.

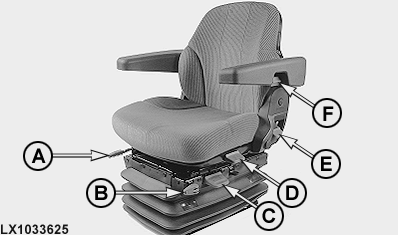

A-Fore-and-aft adjustment
B-Lever for fore/aft spring
C-Height adjustment
D-Lever for swivel movement
E-Backrest tilt
F-Armrest tilt adjustment

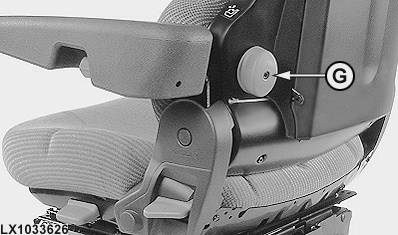

G-Lumbar support adjustment

OU12401,0001098 -19-16APR04-1/1
