Roof Hatch

The roof hatch can be opened and closed by means of lever (A).

The roof hatch can be adjusted to a narrower or wider angle. To adjust the angle, remove retaining clip (B), pull gas spring from its retainer and remove retainer. Install retainer in the desired position (C) or (D), re-install gas spring to retainer and secure with the clip.

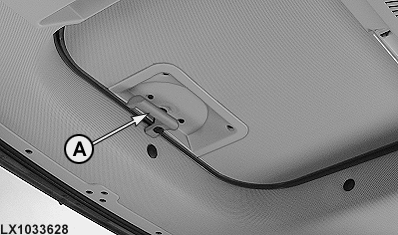

A-Lock lever

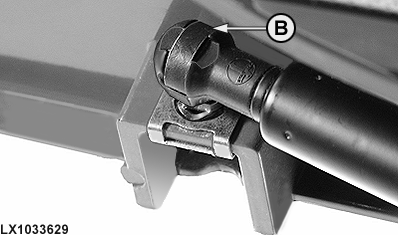

B-Retaining clip

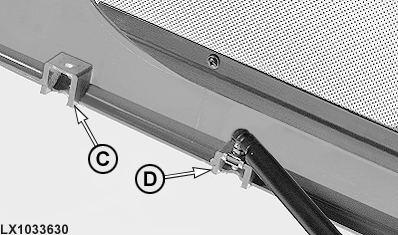

C-Narrow angle
D-Wide angle
