Changing Transmission/Hydraulic Oil

1. Start engine and operate several hydraulic functions to heat up oil.

2. Park tractor so that it is level. Lower draft links and front-mounted implements.

3. Shut off engine and remove the key.

4. Apply handbrake (transmission in neutral).

5. Remove drain screws (A).

6. Replace transmission/hydraulic oil filter elements (B).

7. Remove screw plug (C), pull out intake screen and wash in fuel.

8. Before refilling with fresh oil, reinstall intake screen, replace seals and tighten drain screws to 50 N·m (35 lb-ft).

9. Add transmission/hydraulic oil to the transmission case.

10. Run engine briefly and operate hydraulic functions. Lower the draft links.

11. Shut off engine and wait five minutes.

12. Check oil level. It should be level with upper mark on dipstick. If not, correct oil level.

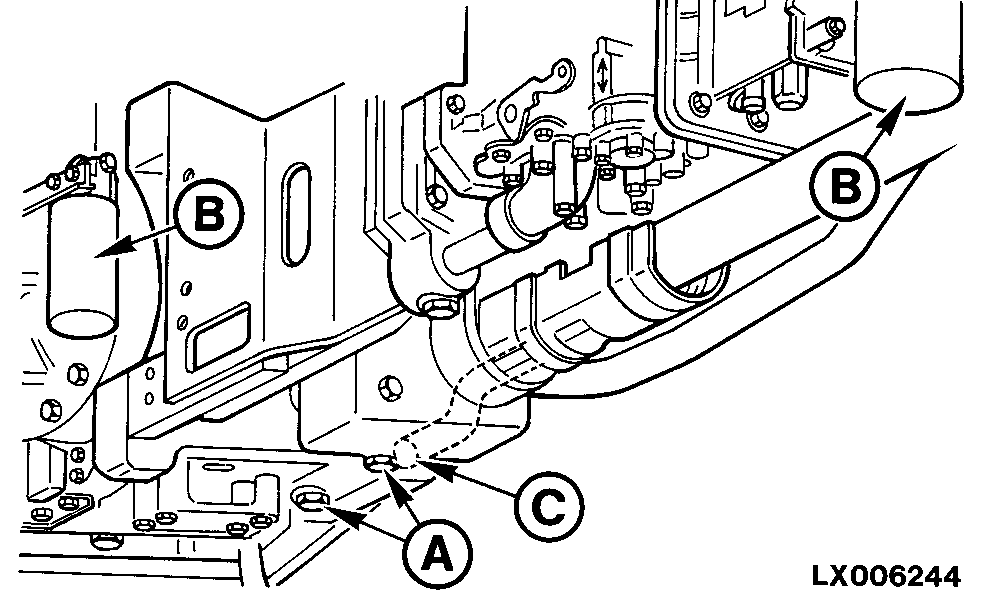

LX006244


A-Drain screws
B-Transmission/hydraulic oil filters
C-Screw plug

Capacities:
SyncroPlus transmission with 12/4 gears... 52 liters (13.7 U.S.gal.)
Power Reverser transmission with 16/16 gears... 52 liters (13.7 U.S.gal.)
PowrQuad transmission with 16/16 or 24/24 gears... 49 liters (12.9 U.S.gal.)
Extra for creeper transmission... 1 liter (0.3 U.S.gal.)
Extra for front-wheel drive... 3 liters (0.8 U.S.gal.)
