Air Conditioning System

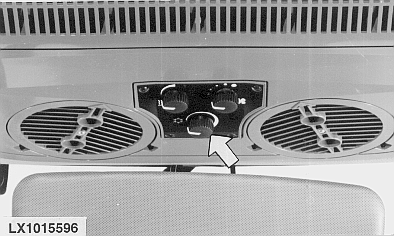

Regulate the air conditioning system via the control. The cooling effect is increased by turning the knob further clockwise. Set the blower and louvers to the desired position.

IMPORTANT: To maintain a consistently high performance, the air-conditioning system should be switched on for two or three minutes once every month, regardless of weather conditions or season (with engine at low idle). The control should be set for maximum cooling effect.

At ambient temperatures below 4° C (39° F), the cab should first be heated (using the heating system) so that the temperature inside the cab is as high as possible.

OU12401,001015B -19-28OCT00-1/1
