Step Adjustment

If necessary, the access step can be adjusted.

Remove screws (D). Move access step to desired position. Install screws (D).

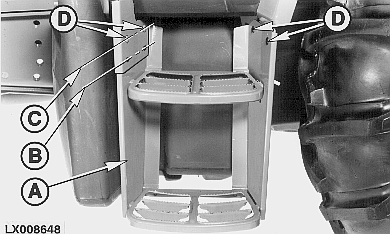

A-Step
B-Bottom position
C-Top position
D-Screws

LX008648

OU12401,001015F -19-28OCT00-1/1
