Direct Actuation

In the event of an electrical failure, the rockshaft can be actuated as follows:

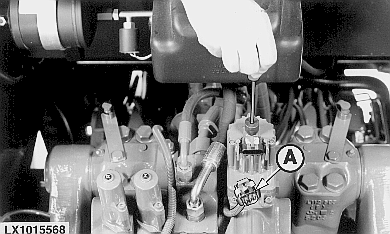

Pull out connector (A).

Run the engine. Take off the protective cap.

From the operator's seat, press down the screw with a screwdriver until it engages in the detent, and then turn clockwise until the three-point hitch rises.

See your John Deere dealer immediately.

OU12401,001016E -19-28OCT00-1/1
