Selective Control Valves

The tractor is equipped with Series 101 selective control valves.

The control lever has four settings.

The remote cylinder extends when the lever is moved to the "Raise" position. The lever is held in this position by a detent. The remote cylinder is held in place when the lever is in "Neutral". The remote cylinder retracts when the lever is moved to the "Lower" position. The lever is held in this position by a detent. When the lever is in the "Float" position (i.e. piston moves freely inside remote cylinder), the mounted implement follows the ground contours.

NOTE: If additional external valves are used, move the control lever to neutral when shutting off each hydraulic function.

If the tractor is equipped with a 3rd or 4th SCV, do not use the 3rd or 4th SCV for continuous withdrawal of large quantities of oil.

Locks (E) allow the control levers to be secured in neutral.

NOTE: Engage locks (E) when driving on roads and whenever the control levers are in neutral because they are not required.

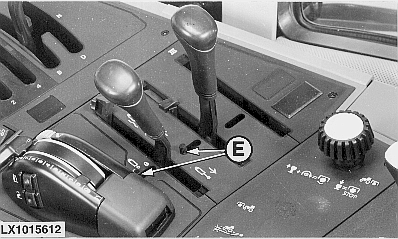

LX1015612

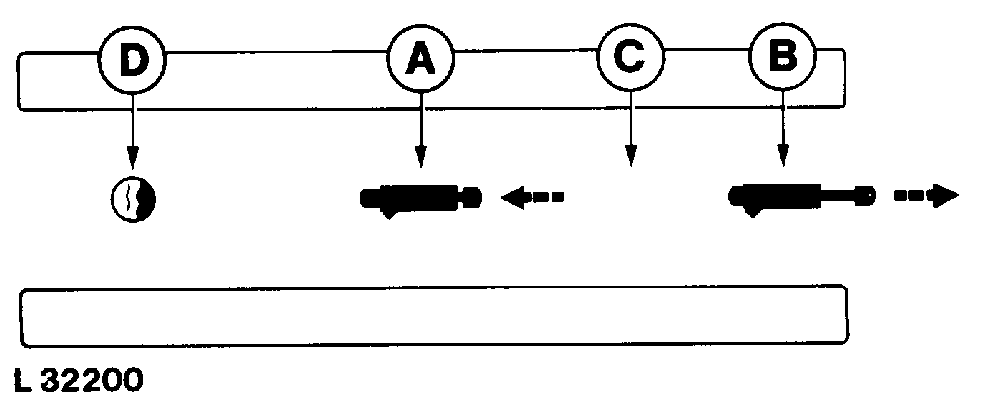

L32200


A-Lower
B-Raise
C-Neutral position
D-Float position
E-Locks

OU12401,0010179 -19-29OCT00-1/1
