Oil Withdrawal with Hydraulic Motor

NOTE: Use only the 1st and 2nd SCVs to operate a hydraulic motor.

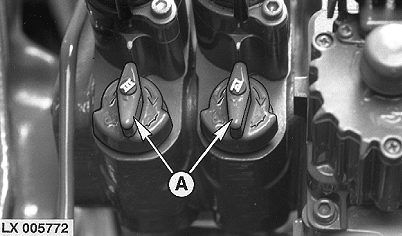

IMPORTANT: Never regulate the flow rate by means of an external valve. Always use load control valves (A).

Maximum obtainable oil flow of transmission/hydraulic oil varies depending on size of the hydraulic pump:

• With the 23 cm ³ (1.4 cu.in.) pump, max. flow is 54 l/min (14.3 gpm).
• With the 27 cm ³ (1.6 cu.in.) pump, max. flow is 63 l/min (16.6 gpm).

Shut off the engine. Move the corresponding SCV control lever to the "float" position. Connect the hydraulic hose from the hydraulic motor.

NOTE: When the control lever is pushed forward (or to the right in the case of the multi-function lever), the pressure is applied to the upper coupler.

Start the engine. Move the control lever to "lower". To switch off the hydraulic motor, move the control lever to the "float" position. Shut off the engine and take out the hydraulic hose.

IMPORTANT: Do not move the control lever to the "neutral" position, as this may result in back-pressure causing damage to the hydraulic motor and hoses.
