Cleaning the Cab Air Filter

Every time the primary filter is serviced, also remove the cab air filter, and clean it with compressed air directed from the clean side.

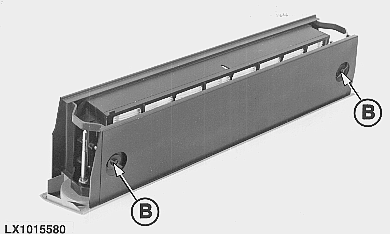

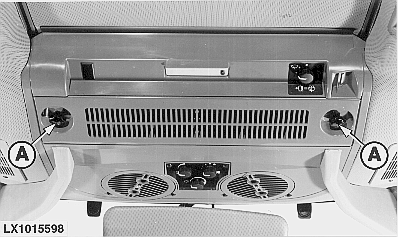

Take out screws (A) and take down the air filter housing. Open catches (B) and take out the air filter element.

Replace the cab air filter together with engine primary air filter element.
