Shifting the PowrQuad Transmission

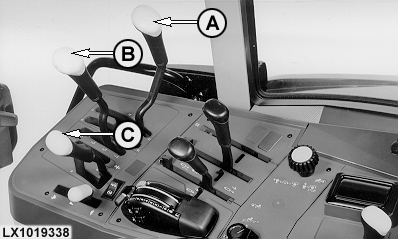

Gears are shifted by means of the range shift lever (A), gear shift lever (B) and reverse drive lever (C).

NOTE: Once the engine has started, wait for 5 seconds before moving reverse drive lever (C) out of neutral position.

The clutch pedal must be depressed to change the ranges. There is no need to depress the clutch pedal to shift gear or to change the direction of travel.

CAUTION: If the reverse drive lever is actuated when the engine is running and a range is selected, the tractor will start to move.

IMPORTANT: Engage parking lock only when the tractor is stationary.

Optimum Gear-Shifting for Driving under Load (Transport):

1. Select a range suitable for driving away under load.
2. Engage the first gear.
3. Drive away and change up through the ranges until the top range is reached.
4. Change up through the gears.

A-Range shift lever
B-Gear shift lever
C-Reverse drive lever

OU12401,00101A8 -19-01NOV00-1/1
