OMAL152808: 6520 and 6620 SE Tractors, Block File: OU12401_00101A9_19

The PowrQuad transmission has 4 ranges. 4 gears can be selected in each range. Reverse travel may be selected in any range.

causym CAUTION: High speeds can be achieved when reversing in the higher ranges, so take great care.

NOTE: Depending on equipment and legal requirements, there may be only 12 reverse gears.

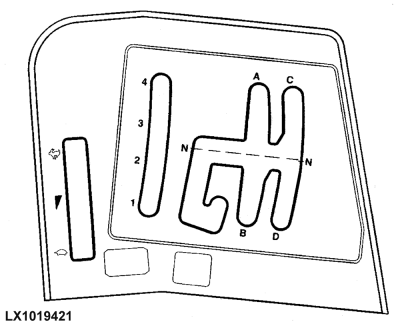

PowrQuad, rev. drive lever on console

LX1019421

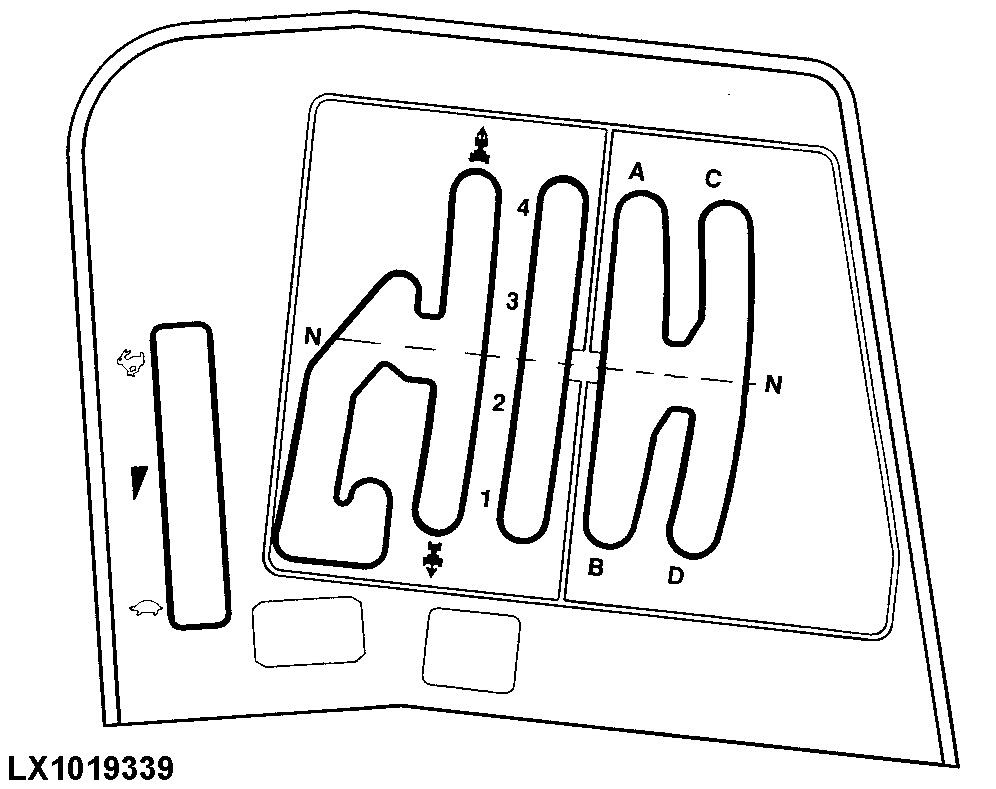

PowrQuad, rev. drive lever on wheel

OU12401,00101A9 -19-01NOV00-1/1
