Installing Front Weights

One basic weight (A) and up to 18 front weights (B) may be installed.

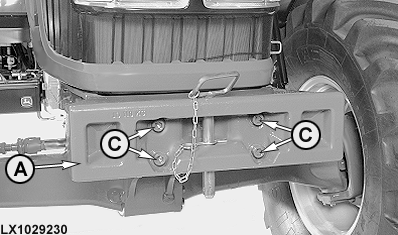

IMPORTANT: Tighten attaching screws (C) on basic weight (A) to 600 N·m (440 lb-ft) and screws (E) of additional weights (B) to 230 N·m (170 lb-ft).

The following front weights (B) may be installed on the tractor:

Basic weight
80 kg (175 lb)
110 kg (240 lb)		 Quantity of additional weights
x - 16
- x 18



Each additional weight weighs 50 kg (110 lb). Every increase in weight of 10 kg (22 lb) increases the front axle load by approx. 12 kg (26.5 lb).

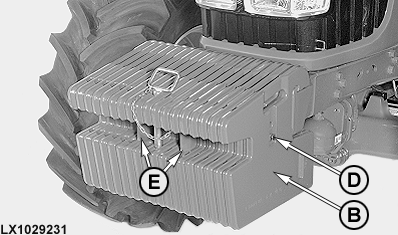

IMPORTANT: When installing six or more additional weights, they must be installed to form a jaw (D).

The jaw hitch should be used for shunting and towing on metalled road surfaces only.
