Checking Oil Level in MFWD Axle Housing

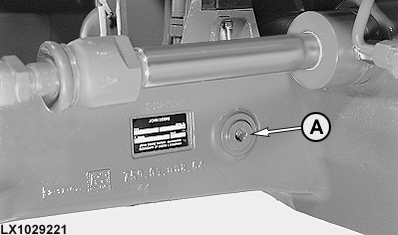

Remove level plug (A). Oil should be level with screw bore. Add oil as needed. Tighten level plug to 150 N·m (110 lb-ft). Always use a transmission oil listed in the "Fuel, Lubricants, Hydraulic Oil and Coolant" section.

NOTE: The position of the level plugs varies depending on axle type.

OU12401,00103E7 -19-01MAR03-1/1
