Tighten Front Wheel Nuts

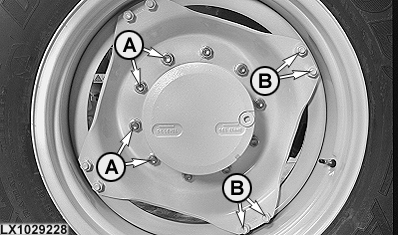

After adjusting front wheel tread, tighten front wheel attaching nuts (A) to 480 N·m (355 lb-ft). Torque nuts (B) to 250 N·m (185 lb-ft).

IMPORTANT: After the first 4 and 8 hours of operation, retighten all front wheel attaching nuts. Check tightness of these nuts frequently during the next 100 hours of operation.

OU12401,0010452 -19-01MAR03-1/1
