Operating Power Take-Offs

causym CAUTION: Always disengage the PTO when not in use.

causym CAUTION: High-inertia implements do not come to a standstill the moment the PTO control lever is shifted to the disengaged position. Do NOT approach the implement while it is "coasting down". Do not work on the implement until it has stopped.

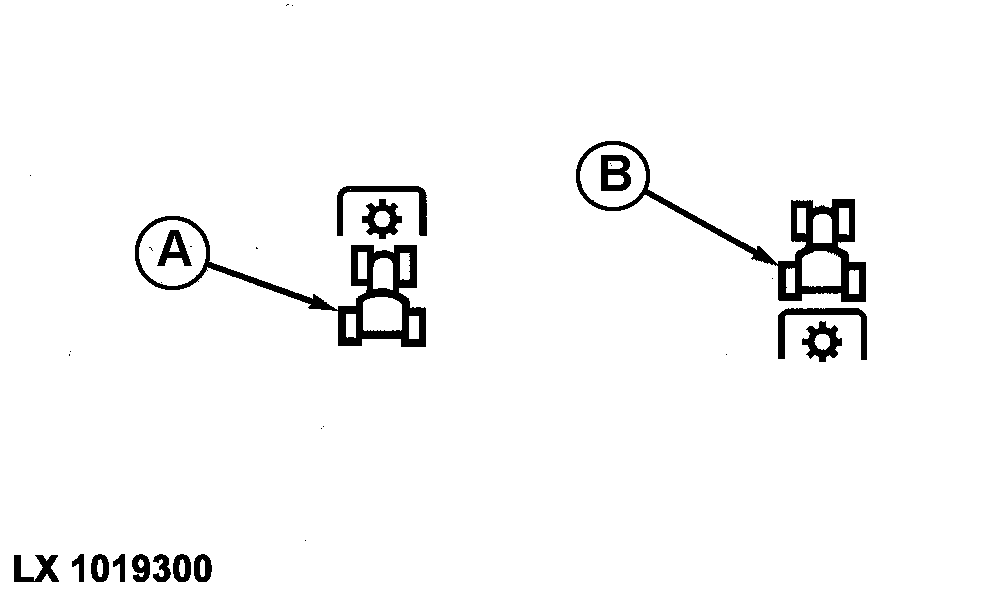

The PTOs can be engaged and disengaged on-the-go and under load. When a PTO is engaged, the relevant light (A) and/or (B) comes on.

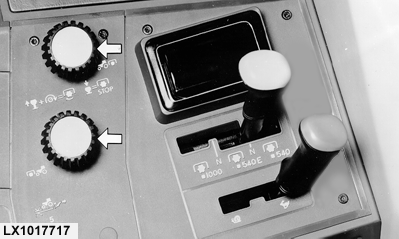

To switch on the PTO, lift up the switch button and turn it to the right. To switch off the PTO, press the button down.

NOTE: If the engine is switched off while the PTO is running and then restarted, the PTO will not re-engage. Even so, lights (A) and (B) continue to shine and flash. Switch off PTO and then restart.



LX1017717
LX1019300

OULXE59,00104D6 -19-14DEC03-1/2

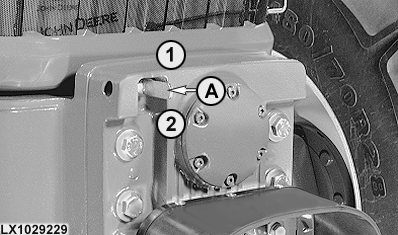

If the front PTO is not required for a lengthy period, the PTO gear can be disengaged by means of lever (A), thus preventing the gear train components from turning unnecessarily.

To turn the gear train off, pull lever (A) up; to switch it on, push the lever down.

IMPORTANT: Engage PTO gear only when the engine is shut off.


A-Selector lever
1-Disengaged
2-Engaged

LX1029229

OULXE59,00104D6 -19-14DEC03-2/2
