Engaging Front-Wheel Drive

Front-wheel drive can be engaged and disengaged in all gears (forward and reverse), on-the-go and under load without using the clutch.

NOTE: Disengage front-wheel drive before driving at high speed on public roads.

NOTE: When braking with both brake pedals together, front-wheel drive cuts in automatically regardless of the position selected at the front-wheel drive switch. The front-wheel drive indicator light comes on.

LX1015610
LX002780


A-Front-wheel drive disengaged
B-Front-wheel drive engaged

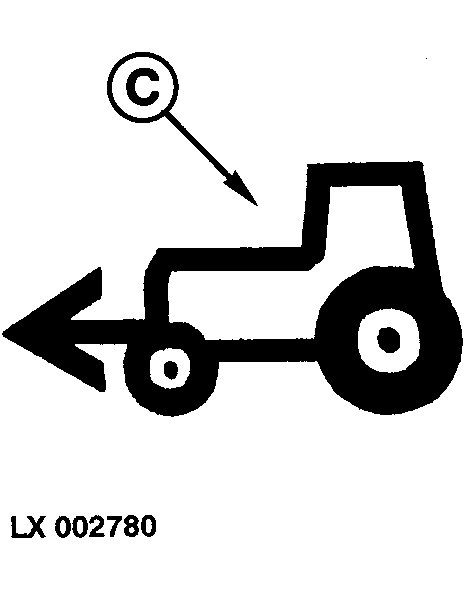

C-Indicator light comes on when front-wheel drive is engaged

OULXE59,001066D -19-05AUG04-1/1
