Tread Widths
|
|
Front wheel tread can be adjusted by replacing or reversing the wheel rims. IMPORTANT: Nuts must be installed on outside of wheel. In addition the complete wheel can be reversed and installed on the opposite side of the tractor. Change |
the wheels from one side to the other, and make sure the arrows on the side walls of the tires are still pointing forward.
NOTE: Wheel tread on tractors equipped with a front loader must not exceed 1.80 m (71 in.). |

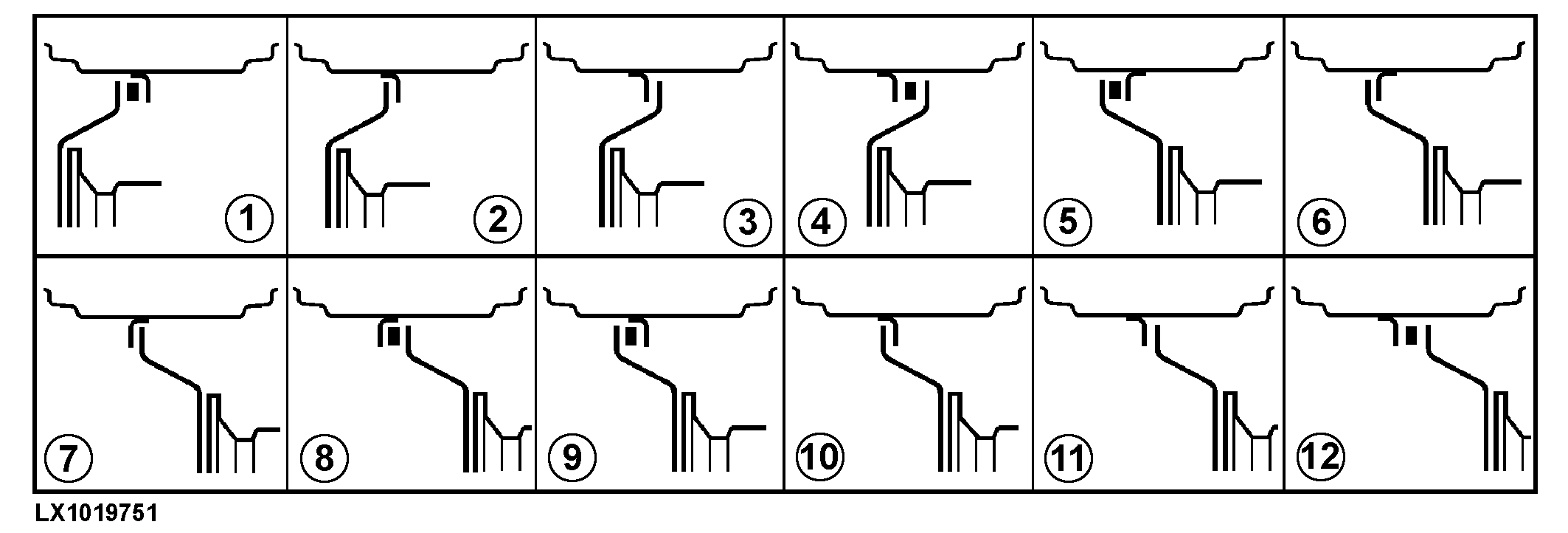

| Positions of rims, wheel disks and spacers |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
| mm (in.) |
1622 (63.9) |
1648 (64.9) |
1680 (66.1) |
1716 (67.6) |
1818 (71.6) |
1844 (72.6) |
1878 (73.9) |
1912 (75.3) |
2022 (79.6) |
2048 (80.6) |
2080 (81.9) |
2116 (83.3) |
| Tires: | ||||||||||||
| 480/65-24 | x* | x* | x* | x | x | x | x | x | x | x | x | x |
| 480/70-24 | - | - | - | x | x | x | x | x | x | x | x | x |
| 540/65-24 | - | - | - | - | x | x | x | x | x | x | x | x |
| 420/70-28 | x* | x* | x* | x | x | x | x | x | x | x | x | x |
| 420/85-28 | - | - | - | x | x | x | x | x | x | x | x | x |
| 480/65-28 | - | - | - | x | x | x | x | x | x | x | x | x |
| 480/70-28 | - | - | - | x | x | x | x | x | x | x | x | x |
| 520/60-28 | - | - | - | - | x | x | x | x | x | x | x | x |
| 540/65-28 | - | - | - | - | x | x | x | x | x | x | x | x |
| Other | x | x | x | x | x | x | x | x | x | x | x | x |
* With pivoting fenders only |
||||||||||||
OULXE59,001067D -19-08SEP04-1/1 |
