Installing Front Weights

The following combinations of basic weight (A) and additional weights (B) may be installed on the tractor:

Tractors Basic weight (A)

75 kg
(165 lb)		 80 kg
175 lb		 110 kg
242 lb		 Quantity of additional weights
6010 x x - 10
6110 x x - 10
6210 x x - 12
6310 x x - 14
6410 x - - 14
6410 - x - 16
6410 - - x 18

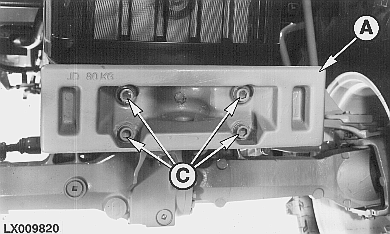

IMPORTANT: Tighten attaching screws (C) on basic weight (A) to 570 N·m (420 lb-ft) and screws (E) of additional weights (B) to 230 N·m (170 lb-ft).

Each additional weight weighs 50 kg (110 lb). Every increase in weight of 10 kg (22 lb) increases the front axle load by approx. 12 kg (26.5 lb).

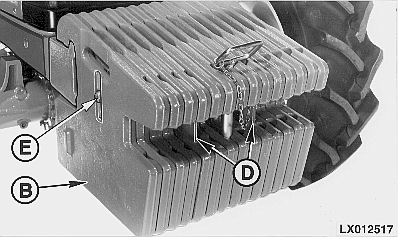

IMPORTANT: When installing six or more front weights, they must be installed to form a jaw (D).

The jaw hitch should be used for shunting and towing on metalled road surfaces only.
