Changing Oil in Final Drives (Front-Wheel Drive Axle with Brake)Replace oil in the final drives after the first 100 hours of operation. Then replace after every 750 hours of operation. Always use a transmission oil listed in the "Fuel, Lubricants, Hydraulic Oil and Coolant" section.

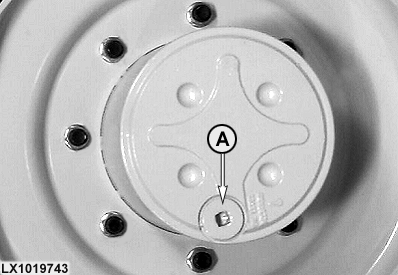

1. Turn wheel until drain screw (A) is at the bottom. Remove drain screw and drain oil into a suitable container. 2. Turn the wheel through 90° so that the "Ölstand" mark is at the bottom (see "Service - Every 250 Hours"), and add oil at the hole for the screw plug. Oil should be level with plug bore. 3. Re-install the drain plug and tighten to 150 N·m (110 lb-ft) on 6510 to 6810 tractors and to 120 N·m (90 lb-ft) on 6910 and 6910S tractors.
|
|
CAUTION:
If final drives are hot, oil is under pressure. Remove drain screw slowly.
AG,OU12401,144 -19-01MAY00-1/1 |
